Logical Design

What is Logical Design?

Logical design is the process of modelling your data before committing to a specific database engine. You define what data exists and how it relates, without worrying about SQL syntax, data type differences between databases, or physical optimisations.

The result is a clear, technology-neutral blueprint that you can later convert into a physical schema for MySQL, PostgreSQL, SQL Server, Oracle, or any of the 80+ databases DbSchema supports.

In logical design, the terminology differs from physical design:

Physical Design	Logical Design	Notes
Schema	Subject Area
Table	Entity
Column	Attribute
Foreign Key	Relation	Identifying, Non-Identifying, Many-to-Many + Cardinality

How to Start Logical Design

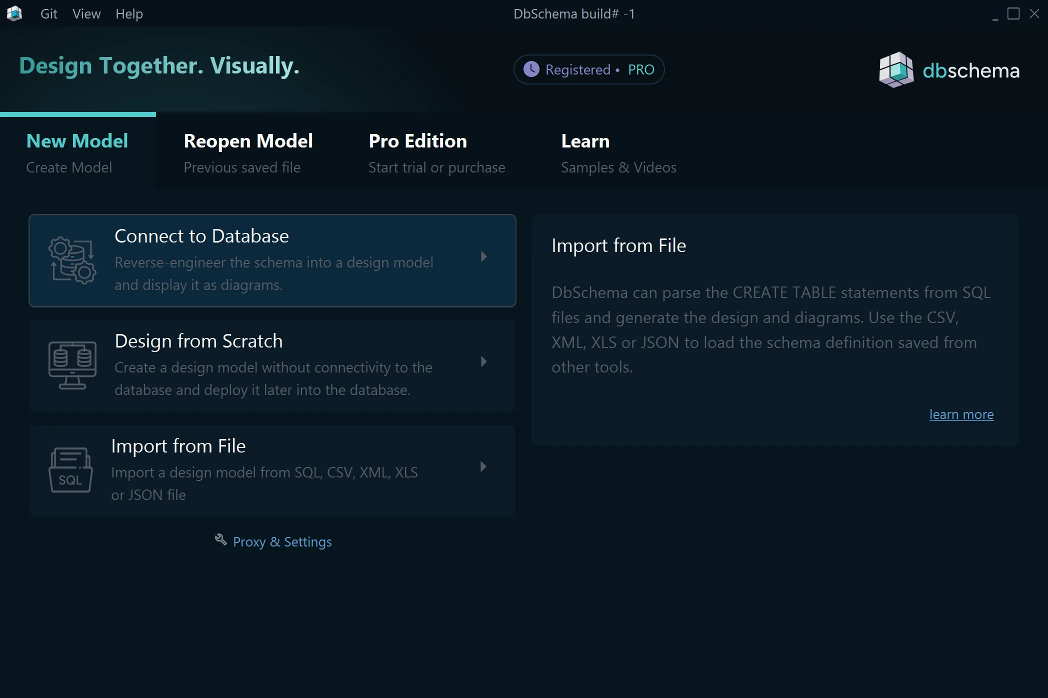

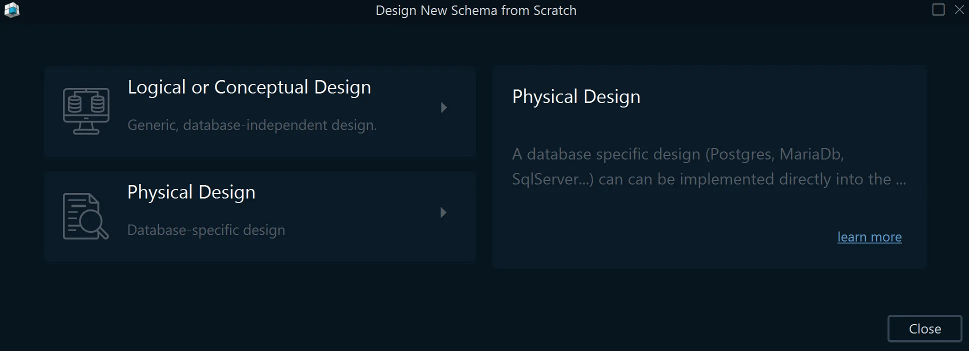

From the DbSchema welcome screen, choose Design from Scratch, then select Logical Design.

A blank logical diagram opens. Right-click the canvas to create your first entity.

Entities, Attributes, and Relations

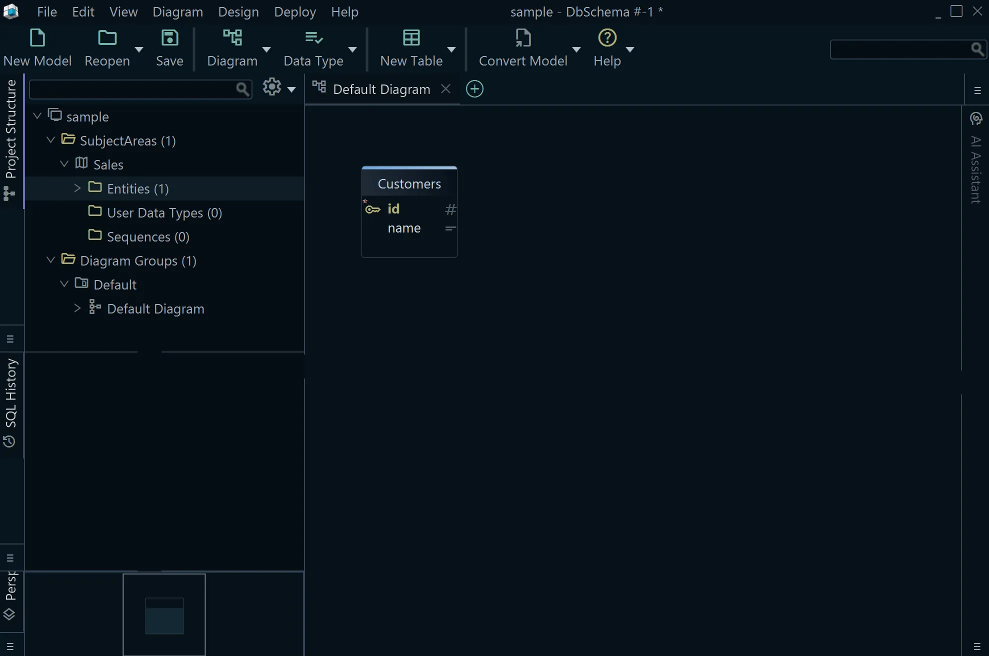

Entities and Attributes

An entity maps to a physical table and represents a real-world concept — for example, Customer, Order, or Product. Each entity has attributes (equivalent to columns) that describe its properties.

Relations

A relation connects two entities, just as a foreign key connects two tables. To create a relation, drag from an attribute in one entity to an attribute in another.

Each relation has several properties:

Identifying vs. Non-Identifying

• Identifying — the parent key is part of the child entity key. The child cannot exist without the parent. Example: PhonePrefix(CountryID, Prefix) depends on Country(CountryID).
• Non-Identifying — the child references the parent but has its own independent identifier. Example: Resident references City.CityID but has its own primary key.

Mandatory vs. Optional

• Mandatory — the child must always reference a parent (NOT NULL equivalent). Example: every Order must belong to a Customer.
• Optional — the reference may be absent (nullable equivalent).

Cardinality

• 1:1 — each parent has exactly one child
• 1:n — one parent, many children (the most common type)
• Many-to-many — resolved through a junction entity during conversion to physical design

Normalization

Normalization organises data to eliminate redundancy and make updates consistent. DbSchema logical design makes it easy to model normalised structures from the start.

First Normal Form (1NF)

Goal: every attribute holds a single, atomic value — no lists or repeating groups.

Problem — multi-value attributes:

OrderID | Customer     | Products           | Phones
101     | Alice Smith  | Shoes, T-shirt     | 555-1234, 555-5678

1NF solution — one value per cell:

OrderID | Customer     | Product   | Phone
101     | Alice Smith  | Shoes     | 555-1234
101     | Alice Smith  | T-shirt   | 555-5678

Second Normal Form (2NF)

Goal: remove partial dependencies — every non-key attribute must depend on the whole primary key, not just part of it.

Problem — composite key (OrderID, Product), but Customer depends only on OrderID:

OrderID | Product  | Customer     | Phone
101     | Shoes    | Alice Smith  | 555-1234
101     | T-shirt  | Alice Smith  | 555-1234

2NF solution — split into two entities:

Orders: OrderID | Customer | Phone

OrderDetails: OrderID | Product

Third Normal Form (3NF)

Goal: remove transitive dependencies — non-key attributes must depend only on the primary key, not on each other.

Problem — CustomerName and Phone depend on CustomerID, not on OrderID:

OrderID | CustomerID | CustomerName | Phone
101     | C001       | Alice Smith  | 555-1234

3NF solution — separate the Customer entity:

Orders: OrderID | CustomerID

Customers: CustomerID | CustomerName | Phone

Normal Forms Summary

Normal Form	What It Fixes	Result
1NF	Repeating groups, non-atomic values	Each attribute holds one value
2NF	Partial key dependencies	Attributes depend on full key
3NF	Transitive dependencies	No indirect column relationships

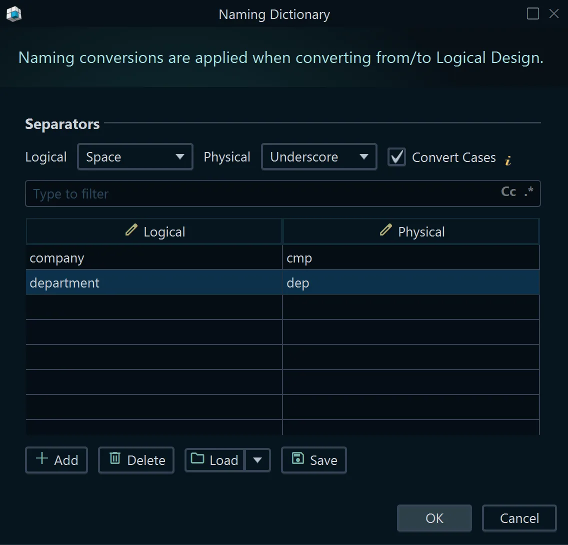

Naming Dictionary

The naming dictionary controls how logical names are translated into physical names during conversion. For example, a logical attribute named First Name could become first_name or FIRST_NAME depending on your naming rules.

Open the naming dictionary from the Convert Model menu.

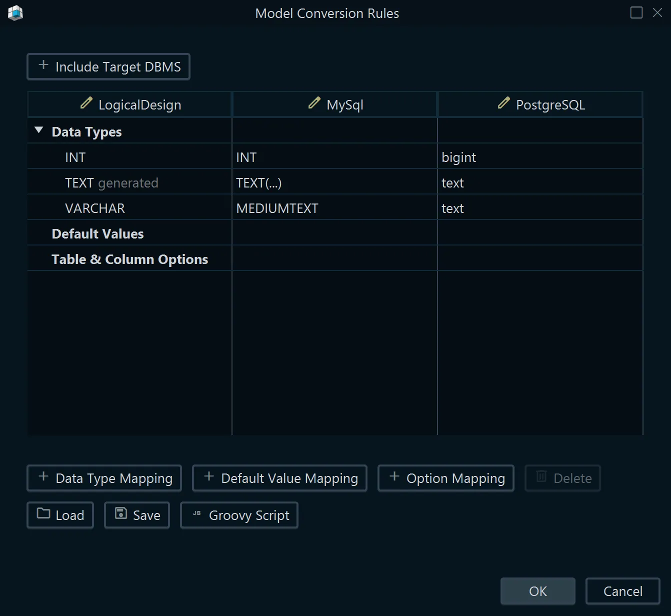

Conversion Dictionary

The conversion dictionary maps logical data types to physical data types for each target database. For example, the logical type Text might convert to VARCHAR(255) for MySQL and NVARCHAR(255) for SQL Server.

You can customise the mappings per database to match your conventions.

Generating the Physical Model

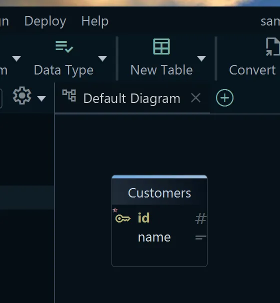

Once your logical design is complete, convert it to a physical model from Convert Model → Generate Physical Design. DbSchema applies the naming and conversion dictionaries and produces a fully editable physical schema targeting the database of your choice.

From there you can connect to a database and deploy the schema, or continue refining it with indexes, constraints, and stored procedures.
