MongoDB User Collection: Schema Design Best Practices

A MongoDB user collection has to balance flexible documents against memory limits and read efficiency: embed bounded data, reference unbounded data, then enforce the result with a $jsonSchema validator. DbSchema reverse-engineers those collections from sampled documents, records the virtual relations MongoDB never declares, and keeps both in a model file you can review in Git.

Does MongoDB use collections?

MongoDB organizes data into collections, which hold BSON documents. In relational databases, tables enforce fixed columns and strict data types across every row. In contrast, MongoDB collections store documents with flexible schemas. Individual documents inside the same collection can contain different fields, nested subdocuments, and distinct data structures.

Documents are serialized as BSON (Binary JSON). BSON extends standard JSON by adding native data types such as ObjectId, Date, 64-bit integer (long), Decimal128, and raw binary data. This storage format allows applications to represent rich object graphs directly in the database without complex object-relational mapping.

• Collections store groups of related BSON documents without enforcing rigid column definitions across the entire dataset.
• Documents support polymorphic structures, letting schemas evolve across application versions without mandatory offline table migrations.
• Indexes are defined at the collection level, targeting top-level fields or nested subdocument paths to accelerate queries.
• Collections act as the primary organizational unit for access control, sharding, and aggregation pipelines.

The situation this solves: Designing a User Collection

User management systems represent the foundation of modern web and mobile applications. A user profile rarely consists of simple authentication credentials alone. In production environments, user records interact with roles, security settings, profile metadata, multi-factor authentication (MFA) devices, notification preferences, billing addresses, and continuous activity logs.

Inexperienced schema design often treats document databases like relational tables by splitting every attribute into separate collections, or makes the opposite mistake of dumping all historical user events into a single array. A single MongoDB document has a hard limit of 16 MB. Unbounded arrays such as audit trails or clickstream logs eventually breach this ceiling, corrupting writes.

MongoDB relies on the WiredTiger storage engine, which caches uncompressed documents in RAM. When documents grow excessively large due to embedded log history, reading basic authentication data pulls megabytes of unused payload into the working set cache. This memory pressure flushes hot data to disk, causing high disk I/O and degraded throughput.

A production user collection must optimize for the application's most frequent read operations. Grouping core credentials and static preferences into the primary document ensures single-roundtrip authentication while keeping the document footprint under a few kilobytes.

How does MongoDB handle relationships between data in collections?

MongoDB models relationships through two distinct mechanisms: embedded documents (denormalization) and document references (normalization). Choosing the right approach depends on data cardinality, document size limits, update frequency, and application read patterns as detailed in modern MongoDB schema design workflows.

When to Embed Related Data

Embedding places child objects directly inside the parent document as nested subdocuments or arrays. Use embedding when the child data has a bounded 1:1 or 1:Few relationship with the parent, is frequently read alongside the parent, and is rarely updated independently.

Embedding user settings, notification rules, and address lists within the user document allows the backend to retrieve the complete user state in a single query with zero database joins. Because MongoDB executes writes atomically at the document level, updating embedded profile attributes requires no multi-document transaction overhead.

When to Reference Related Data

Referencing stores related entities in separate collections and links them using unique identifiers, typically the child's or parent's ObjectId. Use references when relationships are 1:Many (unbounded) or Many:Many, when child documents exceed several megabytes, or when multiple domain services query the related records independently.

User activity logs, payment transaction histories, and uploaded media files should reside in separate collections. The parent user document stores only the user's primary key, and the backend resolves relations via explicit application queries or aggregation pipelines using the $lookup stage.

How to connect two collections in MongoDB?

MongoDB does not enforce relational foreign key constraints at the database engine level. The database engine permits storing references between collections via ObjectId fields, but it will not automatically validate reference integrity or cascade deletions. DbSchema makes those references visible: its MongoDB diagram design draws the links between collections that the database itself never declares.

DbSchema connects to MongoDB and introspects a configurable sample of documents per collection. It infers field names, BSON types, nested objects, and array structures to construct an interactive visual design model. That inferred schema is an approximation of the sampled documents, not a structure MongoDB itself enforces.

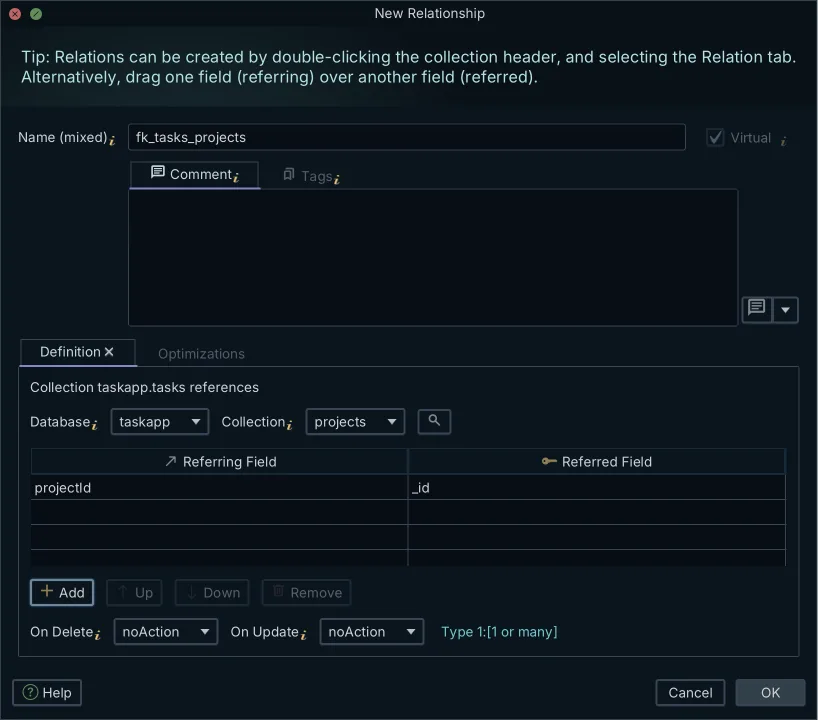

DbSchema bridges that gap with virtual foreign keys, which represent relationships that MongoDB does not natively declare or enforce. You create a virtual relation by dragging a field from one collection onto another in the visual canvas. DbSchema then draws connector lines on the diagram and saves these relationship definitions locally inside its XML design model file.

In complex database architectures, a single collection can appear in several diagrams within the same design model file. You can place the core user collection in an authentication diagram, an e-commerce order diagram, and an analytics overview diagram without duplicating metadata.

• Reverse-engineer collections by introspecting sampled documents to uncover implicit schemas.
• Define virtual foreign keys on the canvas to document relationships without modifying database constraints.
• Open the Relational Data Editor to browse parent and child collections side by side, where selecting a user instantly filters related orders and sessions.
• Generate interactive HTML5 documentation containing vector diagrams where collection and field comments appear as mouse-over tooltips.

Who is MongoDB's biggest competitor?

MongoDB's primary cloud competitor in enterprise document storage is Amazon DocumentDB. Amazon DocumentDB is a fully managed document database service designed to support MongoDB workloads through API compatibility, allowing backend developers to use familiar drivers and client libraries.

The architectural difference lies in storage and compute decoupling. MongoDB Atlas runs database compute and storage on dedicated virtual instances with local SSDs. In contrast, Amazon DocumentDB separates the compute layer from a cloud-native cluster volume that replicates data six ways across three Availability Zones[1].

In Amazon DocumentDB Standard configurations, database I/O is billed separately per million I/O requests, and reads from and writes to the cluster storage volume count as billable I/O, including the I/O generated by features such as change streams and TTL indexes[2].

Poor schema design directly amplifies cloud infrastructure costs. Fragmenting user attributes across multiple referenced collections requires frequent $lookup queries and unbuffered page reads. AWS positions the Standard pay-per-use configuration for low to moderate I/O consumption, and recommends the I/O-Optimized configuration when I/O costs are expected to exceed a quarter of database cluster spend[2], so restructuring schemas to embed frequently co-accessed data pays off twice.

What to check afterwards

After finalizing the user collection schema, enforce strict data integrity rules directly on the database. MongoDB supports server-side validation using JSON Schema ($jsonSchema). Validation rules guarantee that application bugs or rogue scripts cannot insert documents with missing authentication fields or invalid data types.

When a collection contains a validation rule, DbSchema reverse-engineers that rule as the authoritative schema structure rather than relying solely on sampled document approximations. Creating or editing a collection in DbSchema then writes the updated validation rule back to both the live database and the local design model file.

• Deploy $jsonSchema validation rules to enforce required fields like email, passwordHash, and createdAt.
• Verify unique indexes on sensitive lookup fields such as email and username to prevent race conditions during user registration.
• Inspect document sizes using MongoDB collection statistics (collStats) to confirm average user documents remain well below memory-critical thresholds.
• Configure Time-To-Live (TTL) indexes on temporary collections such as password reset tokens or session stores to automate data cleanup.

If your application publishes public user profiles, user directory listings, or developer portfolio pages, monitor their search visibility. Use Google Search Console to submit sitemaps, inspect individual profile URLs, review indexing coverage, and resolve crawl errors across public endpoints[3].

Is MongoDB still relevant in 2026?

MongoDB remains a dominant choice for backend developers in 2026. Its flexible document model, native JSON manipulation, and rapid prototyping capabilities match modern agile microservices and cloud-native applications. When paired with disciplined schema design and structural validation, MongoDB delivers high read-write throughput at global scale.

Complex applications benefit from rigorous logical database design before deploying collections to production. Designing logical and conceptual models that map cleanly to physical database targets requires the Architect edition. Working this way lets you draft models offline in local project files, review schema changes in Git, and synchronize updates safely to live databases.

Download DbSchema and open a model against your own MongoDB instance: reverse-engineer the collections, declare the virtual relations between them, and read the result as a diagram. Reverse-engineering and interactive diagrams are in the free Community Edition. Saving the model to a file, HTML5 documentation, the Relational Data Editor and schema synchronization are Pro. Logical and conceptual design is Architect.

Frequently asked questions

Does MongoDB use collections like SQL uses tables?

Yes, MongoDB stores records as BSON documents within collections, which are roughly analogous to relational tables. However, documents in a single collection can have varying fields and data types, offering more flexibility.

When should I embed data in a MongoDB user collection?

Embed related data when it has a bounded size and is frequently read alongside the parent document. For example, a user's address or basic preferences are perfect candidates for embedding, as they can be retrieved in a single query.

When should I use references instead of embedding in MongoDB?

Use references when the related data grows without bounds, such as user comments or activity logs. Referencing prevents the parent document from exceeding MongoDB's 16 MB size limit and keeps the working memory footprint small.

How do I enforce a schema in a MongoDB collection?

MongoDB supports $jsonSchema validation rules that reject invalid inserts or updates. When a collection has validation rules, DbSchema reverse-engineers them as the authoritative structure and writes edits back to both the database and the local model file.

How does DbSchema visualize relationships if MongoDB lacks foreign keys?

DbSchema uses virtual foreign keys, which are client-side links created by dragging one field to another. These virtual relations are saved in the model file and let you explore related collections side by side, but the database does not enforce them.

Does Amazon DocumentDB use the same schema design as MongoDB?

Amazon DocumentDB offers MongoDB API compatibility but separates storage and compute differently. Because it charges for I/O operations on standard plans, relying heavily on MongoDB referencing instead of embedding can directly increase your cloud infrastructure costs.

How can I monitor the search visibility of public user profiles?

If your MongoDB user collection powers public-facing profiles, you can track their organic performance using Google Search Console. It provides tools to measure search traffic, inspect indexing status, and fix URL coverage issues.
