SQL Server Schema Comparison Tools
DbSchema is the pick here if you want a SQL Server schema you can diff visually and keep in Git: it reverse-engineers the database into an interactive ER diagram, saves that model as a plain-XML .dbs file you commit alongside your application code, and compares the file against any live SQL Server instance to generate the migration script. Redgate SQL Compare is the pick if the comparison has to run unattended inside a deployment pipeline. dbForge Schema Compare is the pick if you never want to leave SSMS, and xSQL Schema Compare is the cheapest way to cover SQL Server Express. What follows is what each one actually does, what it costs today, and where DbSchema is the weaker choice.
What Is a Database Schema in SQL Server?
A database schema in Microsoft SQL Server is a distinct logical container inside a database that groups objects such as tables, views, stored procedures, functions, and indexes. SQL Server treats schemas as independent namespaces. This namespace structure prevents naming collisions by allowing identical object names to exist within the same database under different schema qualifiers, such as sales.Orders and staging.Orders.
Objects in SQL Server utilize a complete four-part identifier format: Server.Database.Schema.Object. When querying an object without specifying its schema, SQL Server resolves the reference by checking the user's default schema first, followed by the dbo default schema.
- Namespace isolation: Group related operational entities logically to prevent naming conflicts across large application modules.
- Granular ownership: Assign schema ownership to specific database roles or principals rather than individual user accounts.
- Simplified addressing: Enable predictable multi-part object resolution across complex enterprise databases.
What Is a DB Schema Used For in SQL Server?
Database schemas in SQL Server serve primarily as security boundaries and administrative management layers. Since SQL Server 2005, user-schema separation has decoupled database principals from object containers, so a schema is an entity in its own right rather than something owned by and named after a single user. This separation allows database administrators (DBAs) to manage security permissions at the schema level rather than maintaining privileges on dozens or hundreds of individual tables.
When a DBA grants permissions such as SELECT, INSERT, or EXECUTE on a schema, all existing objects and any newly created objects within that schema automatically inherit those access rules. Ownership itself can be moved with the ALTER AUTHORIZATION statement, which Microsoft documents as usable to change the ownership of any entity that has an owner, including a SCHEMA, without recreating or renaming the objects inside it[1].
- Streamlined access control: Grant permissions at the schema level (e.g., GRANT SELECT ON SCHEMA::reporting TO ReportingRole) to automatically secure child tables and views.
- Safe user offboarding: Drop or modify database users freely without having to reassign or recreate underlying database tables.
- Logical workload segregation: Separate OLTP operational tables, ETL staging objects, and reporting views into distinct schema perimeters.
How to Compare Schemas in SQL Server?
Comparing database schemas in SQL Server involves analyzing metadata differences across two database instances, snapshots, or version-controlled models. DBAs typically approach schema comparison through two primary methods: manual metadata inspection using system catalog views or automated schema comparison tooling.
Manual comparison relies on querying catalog views like sys.schemas, sys.objects, sys.columns, sys.indexes, and sys.foreign_keys. While direct SQL queries provide raw metadata access, manual scripts quickly fail in production environments due to the extreme complexity of dependency hierarchies, foreign key constraints, default constraints, computed columns, and trigger definitions.
Automated comparison software reverse-engineers both metadata definitions, maps matching objects, identifies structural differences, and constructs ordered DDL migration scripts that preserve referential integrity.
| Comparison Aspect | Manual Catalog Queries (sys.objects) | Automated Schema Compare Tools |
|---|---|---|
| Object Discovery | Requires writing custom recursive queries for each object type | Automatically introspects all tables, views, procedures, keys, and indexes |
| Dependency Analysis | Manual ordering; high risk of foreign key constraint deployment errors | Calculates dependency tree automatically to sequence CREATE/ALTER statements |
| Execution Risk | High probability of data truncation or broken dependencies | Generates safe DDL scripts with built-in rollback and difference previews |
| Speed & Repeatability | Time-consuming and prone to human oversight during releases | Instant visual comparison with repeatable automation and export options |
What Is the Best SQL Server Schema Compare Tool?
There is no single winner: pick by workflow. DbSchema suits visual, offline design work versioned in Git, Redgate SQL Compare suits automated CI/CD deployment pipelines, dbForge Schema Compare fits DBAs who live inside SSMS, and xSQL Schema Compare fits SQL Server Express environments. Each tool targets specific administrative workflows across development and production environments.
Selecting the right utility depends on whether your team prioritizes visual data modeling, automated build servers, or budget-friendly database sync operations. Cross-database modeling tools cover more than 100 engines from a single design file, while dedicated SQL Server utilities offer deep engine-specific hooks.
| Tool | Primary Best Use Case | Key Architecture Focus |
|---|---|---|
| DbSchema | Visual schema design, Git versioning, and cross-database sync | Offline-first .dbs design model with visual diffs and interactive ER diagrams |
| Redgate SQL Compare | Enterprise CI/CD deployment automation and command-line pipelines | Deep SQL Server integration with automated release scripts and SSMS add-in |
| Devart dbForge Schema Compare | SSMS-integrated administrative sync and detailed comparison reports | High-speed native SQL Server schema difference analysis and script execution |
| xSQL Schema Compare | Cost-effective comparison and SQL Server Express environments | Lightweight synchronization with unrestricted Express edition usage |
The Schema Comparison Tools Shortlist and Pricing
Database administrators evaluating a schema comparison tool need clear visibility into licensing models, supported environments, and structural trade-offs. Here is how the top SQL Server schema comparison utilities compare.
DbSchema takes a different approach, centred on interactive ER diagrams and visual schema synchronization across SQL Server and other relational or NoSQL systems. DBAs save a complete database model to a local design file (.dbs) that is plain, indented, human-readable XML, commit it to a Git repository, and compare that offline model directly against live SQL Server databases to generate migration scripts. Its built-in Git Collaboration window clones, commits and pushes that file without leaving the application. The trade-off is clear: stronger visual modeling and cross-platform flexibility, and weaker native CI/CD deployment automation than Redgate offers. Saving the model offline is also a Pro feature -- the free Community edition reverse-engineers and diagrams, but does not save to file or synchronize.
Redgate SQL Compare is a dedicated SQL Server comparison utility used widely across enterprise database environments. It compares live databases, backups, snapshots, and source-control scripts, producing ordered T-SQL deployment scripts. Redgate licenses it as a per-user subscription and lists $327 per user for one year, with volume bands above that as the licence count rises and volume quotes handled by sales[2]. Its command line drives deployments from a build server, but read the licensing line on Redgate's own product page before budgeting: "To use Redgate's command line tools as part of a Redgate Pipeline (an automated database change delivery process) a Redgate Flyway Enterprise, Redgate Deploy or SQL Toolbelt license is required." The $327 SQL Compare licence does not by itself buy the CI/CD automation the tool is usually recommended for. Redgate's feature list covers comparison, deployment scripting and source control across SQL Server, Azure SQL and SQL Server on Amazon RDS; ER diagramming and other database engines are not on it. If your team is not on Windows, see our round-up of Redgate SQL Compare alternatives for Linux and macOS.
Devart dbForge Schema Compare for SQL Server is available both as a standalone application and as an add-in for SQL Server Management Studio, so comparisons and synchronizations can run inside the SSMS IDE[3]. It compares live databases, native SQL Server backups, snapshots, and script folders, exports comparison reports to HTML, Excel, and XML, and automates recurring runs from the command line. Devart lists it from $239.95 per year, with a Compare Bundle that adds data comparison from $299.95 per year; Devart's ordering page offers both perpetual and subscription licences and did not state a per-user unit at the time of writing[3].
xSQL Schema Compare offers schema synchronization for on-premises SQL Server instances (2005 through 2022) and Azure SQL databases. Comparison sessions are saved automatically in the workspace so the most frequent comparisons rerun with one click, and the tool adds proprietary database snapshots, synchronization logs and differences reports, and a command-line utility for batch execution[4]. It is sold as a one-year per-user subscription: $299 for the Silver tier and $749 for the Gold tier, with volume and extended licensing handled by sales[4].
| Tool | Supported Engines | Offline / Local Model File | Pricing Model |
|---|---|---|---|
| DbSchema | SQL Server, Azure SQL, and 100+ SQL/NoSQL databases | Yes (.dbs XML file saved locally and versioned in Git) | Perpetual one-time licence or monthly subscription, with a free Community edition |
| Redgate SQL Compare | SQL Server, Azure SQL, Amazon RDS SQL Server | Scripts folder / SQL snapshots | From $327 per user / year (annual subscription); pipeline use needs an extra Redgate licence |
| Devart dbForge Schema Compare | SQL Server, Azure SQL | Schema snapshots / scripts | From $239.95 per year; Compare Bundle from $299.95 per year |
| xSQL Schema Compare | SQL Server (2005-2022), Azure SQL | Schema snapshots | One-year per-user subscription: $299 Silver, $749 Gold |
Is SQL Compare Free?
Redgate SQL Compare is a proprietary commercial product and is not free; Redgate provides a fully functional 14-day free trial, after which users must purchase an annual subscription at $327 per user per year[5]. DBAs seeking free or lower-cost alternatives have several options depending on their database edition and feature requirements.
OpenDBDiff is a free, open-source database comparison tool hosted on GitHub under the GNU General Public License (GPL-2.0)[6]. It reports schema differences across tables, columns, constraints, indexes, triggers, and stored procedures for SQL Server, generating synchronization scripts[6]. Its most recent tagged release, 0.13.0, is dated 27 August 2020, so there is no recent release cadence behind it.
xSQL runs Schema Compare in Trial mode, fully functional with no restrictions, for the first two weeks after installation, then switches to the Lite Edition if no license is found[4]. The Lite Edition still compares SQL Server Express with no restrictions, but limits other SQL Server editions to 25 tables and 40 views, procedures, or functions each[4].
When evaluating free database design tools, note that the DbSchema Community edition is available at no cost and with no time limit, supporting schema reverse-engineering, interactive ER diagrams, table and column creation, and SQL query editing across all engines. Schema synchronization is not in it: saving the design offline to a .dbs file, schema synchronization, the visual query builder and HTML5 documentation all sit in the paid Pro edition. That is the honest limit of the free tier for this job -- you can diagram a SQL Server schema for nothing, but you cannot diff and sync it.
- DbSchema Community: Free with no time limit for reverse engineering, ER diagrams and SQL editing; offline model files and schema synchronization are Pro features.
- Redgate SQL Compare: Commercial only ($327/user/year) with a 14-day trial, plus a further licence for pipeline use.
- xSQL Lite Edition: Free and unrestricted on SQL Server Express; capped at 25 tables on other editions.
- OpenDBDiff: Free and open-source under GPL-2.0 for basic T-SQL synchronization; last release August 2020.
Synchronizing SQL Server Schemas with DbSchema
DbSchema gives DBAs a structured workflow to maintain schema integrity, detect drift, and synchronize changes between development, staging, and production SQL Server instances. Unlike tools that require continuous live database connectivity, the model itself lives on disk.

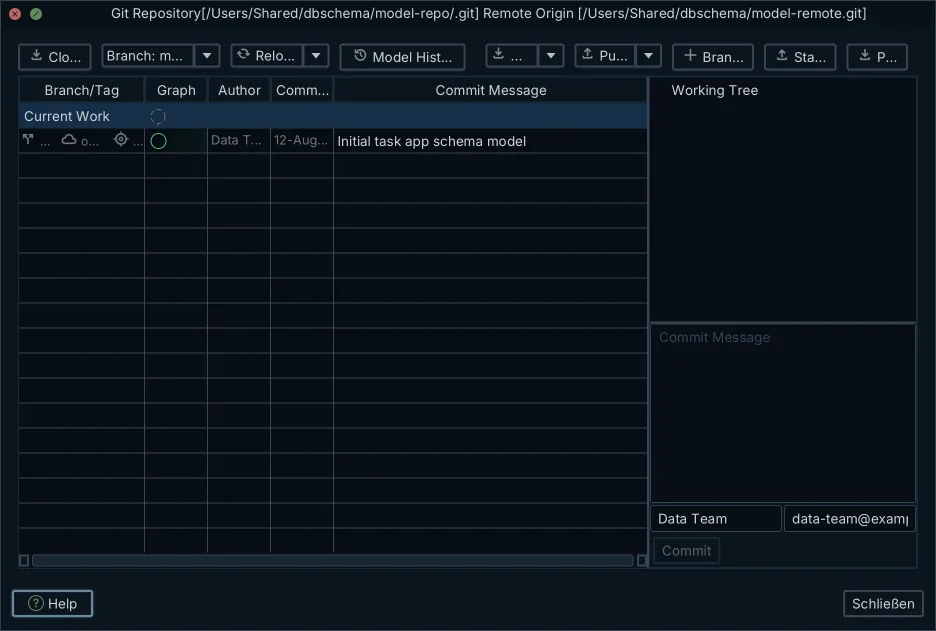

DBAs create or reverse-engineer a SQL Server visual design directly into a local .dbs project file. This XML file stores the entire schema definition, layout diagrams, and documentation offline. Teams commit the .dbs file directly to Git, enabling version-controlled database schema management alongside application source code.
- Connect to SQL Server: Load the Microsoft SQL Server JDBC driver through DbSchema's Driver Manager and connect with Windows Authentication or SQL Server Authentication.
- Reverse engineer schema: Introspect existing tables, views, foreign keys, stored procedures, and triggers into a visual design model.

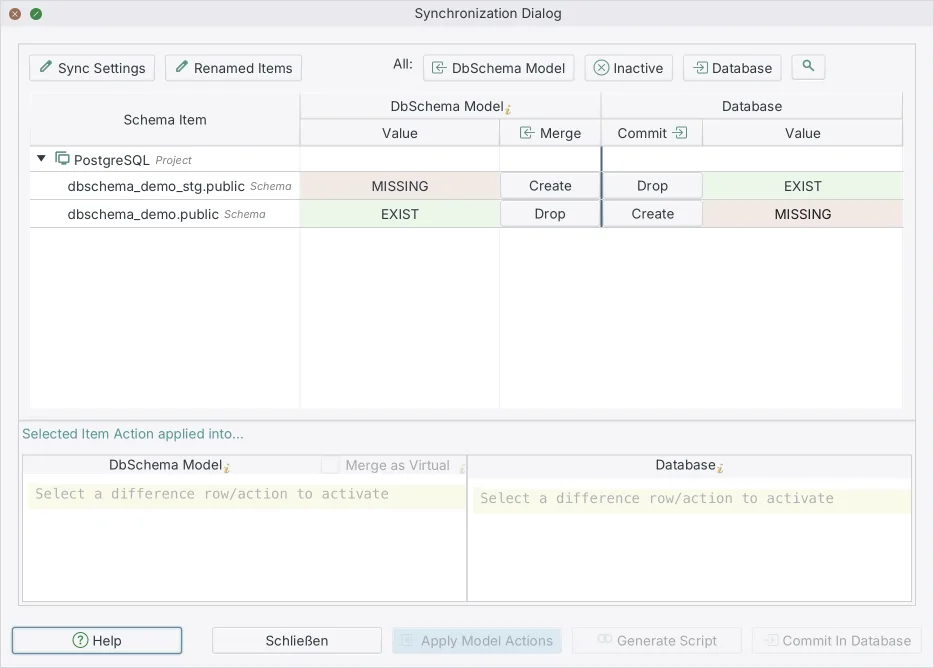

- Compare schema against database: Open the Schema Synchronization dialog to compare your offline Git-versioned model against any target SQL Server database.
- Review structural diffs: Inspect highlighted additions, modifications, and deletions across tables, columns, indexes, and constraints.

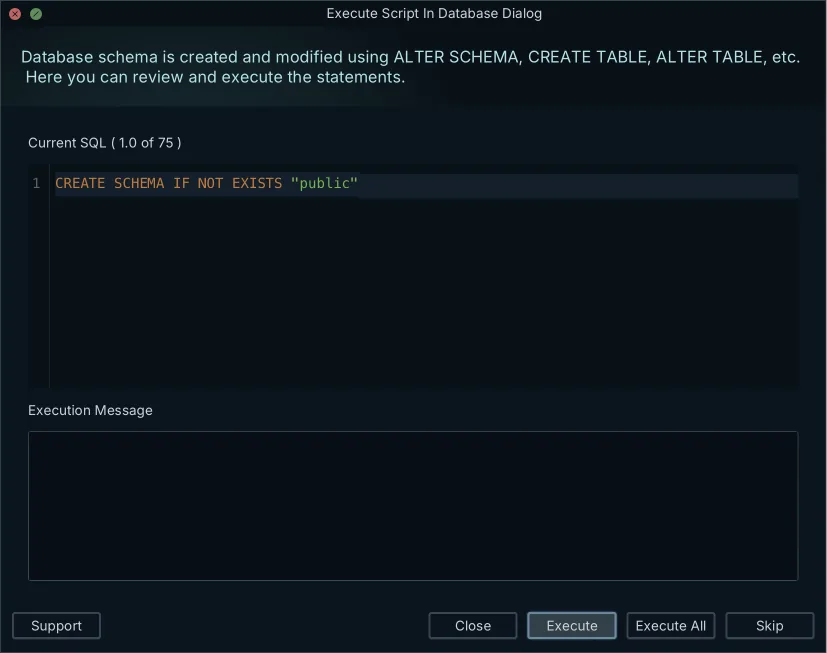

- Generate migration scripts: Review generated T-SQL DDL upgrade or rollback scripts and execute them directly against the live database.
Download DbSchema, open your offline model against your own SQL Server database, and try visual schema synchronization in the Pro edition.
Frequently asked questions
Is there a free SQL Server schema compare tool?
Partly. The free DbSchema Community edition reverse-engineers a SQL Server schema and queries it, but schema synchronization is a Pro feature. Open-source OpenDBDiff provides free schema comparison and synchronization scripts, and xSQL Schema Compare offers a free Lite Edition that is unrestricted on SQL Server Express, though it limits other editions to 25 tables.
How do I compare SQL Server databases manually?
Database administrators can manually compare schemas by querying system catalog views such as sys.objects and sys.columns. While this approach requires no extra software, writing and maintaining custom comparison scripts is time-consuming and error-prone for large databases.
Can I compare SQL Server schemas across different environments?
Yes. Dedicated schema comparison tools connect to development, staging, and production databases to analyze differences. Some also let DBAs compare a live SQL Server database against an offline model file versioned in Git.
Which tools integrate with automated CI/CD pipelines?
DbSchema focuses on visual offline-first schema design, HTML5 documentation, and schema synchronization you drive yourself across multiple database engines. For native, heavily automated CI/CD pipeline integration, Redgate SQL Compare is the usual choice -- budget for the Flyway Enterprise, Redgate Deploy or SQL Toolbelt licence Redgate requires to run its command line inside a pipeline.
What is the difference between schema and data comparison?
Schema comparison detects structural differences, such as missing tables, altered columns, or changed indexes. Data comparison analyzes the actual row values within those tables to ensure reference data and configurations match across environments.
