Generating MongoDB Validation Rules From a Design
Learn how to model collections, explore virtual relations, and generate MongoDB validation rules from a visual design to enforce data structure.
On this page
How does MongoDB handle relationships between data in collections?
MongoDB manages relationships between data entities using two primary modeling strategies: embedding documents and referencing documents. Embedding stores related data within a single BSON document, whereas referencing links separate documents across collections using unique identifiers.
Embedded documents and arrays work best for one-to-few relationships where the child entities are always read together with the parent record, because one read returns the whole object graph and no second lookup is needed.
The BSON storage engine enforces a hard limit of 16 mebibytes per document and supports no more than 100 levels of document nesting, where each object or array adds a level[1]. Unbounded arrays that grow continuously will eventually violate this document size ceiling.
Embedding vs. Referencing Strategy
| Relationship Type | Recommended Approach | Access Pattern | Integrity Enforcement |
|---|---|---|---|
| One-to-Few | Embedded Document | Single-read atomic query | Application or JSON Schema |
| One-to-Many | Referenced ObjectId | Separate queries or $lookup | Application-level checks |
| One-to-Squillions | Referenced Parent ID | Indexed child lookups | Application-level checks |
Referencing stores an ObjectId in one document to point to a related document in another collection. By default, MongoDB does not enforce relational constraints or foreign key checks on these references.
How to connect two collections in MongoDB?
Connecting two collections in MongoDB requires referencing document identifiers across collections or joining documents dynamically at query time using the $lookup aggregation stage. MongoDB does not provide native database-level foreign key constraints to enforce referential integrity automatically.
Visual design tools close this constraint gap with virtual relations (also known as virtual foreign keys) drawn on your diagram. These virtual relations are design-side links that MongoDB itself does not declare or enforce. You create them by dragging one field onto another in the diagram interface.
The modeler draws connector lines between collections and saves the relational metadata directly into your local design model file without altering the underlying database.
Visual Multi-Collection Data Browsing

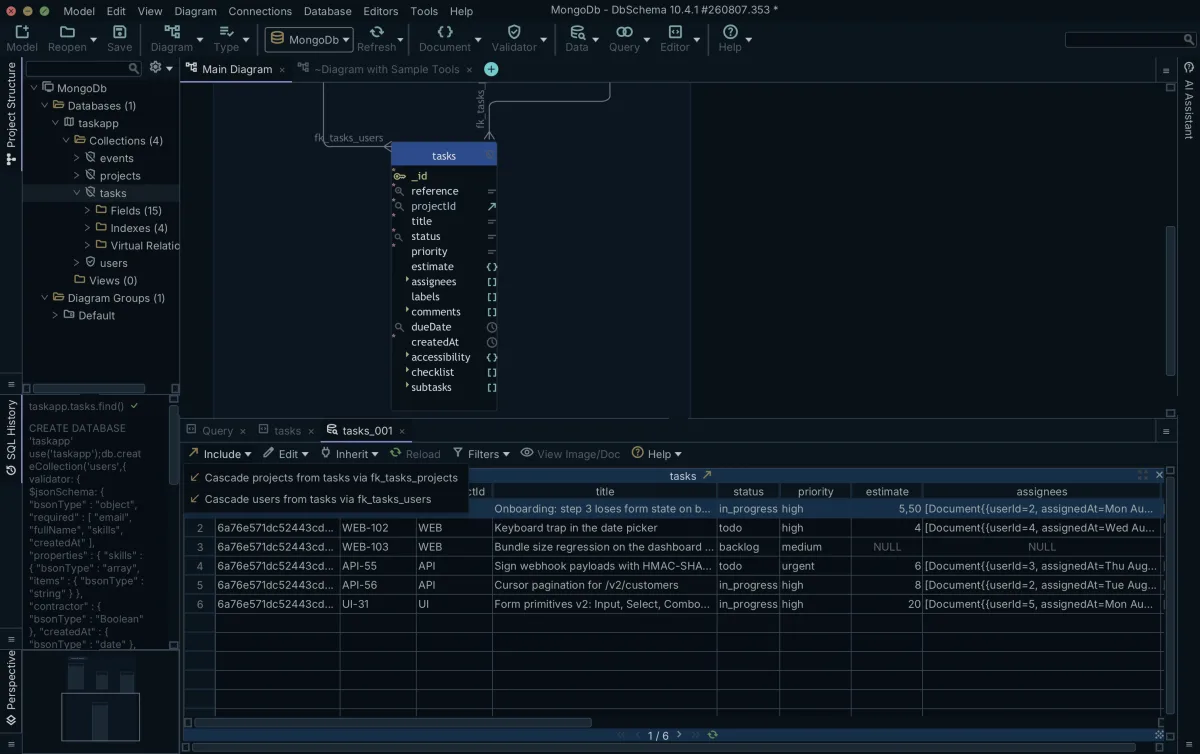

A Relational Data Editor uses these virtual relations to open multiple collections side by side. Selecting a record in the parent pane refilters the child panes to the documents that match, level after level. That data-browse pane is a Pro Edition feature; the diagram and the sampling that feed it are in the free Community Edition.
- Drag a foreign key field from a child collection onto the primary _id field of a parent collection.
- Review the virtual relation connector line directly on your visual design canvas.
- Save the model to persist the relationship structure in your local project file.
- Launch the Relational Data Editor to inspect linked documents simultaneously across collections.
Is MongoDB still relevant in 2026?
MongoDB remains highly relevant in 2026 for building distributed applications that require horizontal scalability, flexible document modeling, and dynamic data ingestion. Modern development teams rely on its sharding capabilities and flexible BSON schema to handle unpredictable data structures.
Production architectures in 2026 increasingly demand schema reliability alongside document flexibility. As systems scale across microservices and engineering teams, unconstrained document stores can introduce data drift and runtime serialization errors.
Balancing Schema Agility and Data Consistency
Modern backend engineering pairs flexible document storage with strict structural enforcement. Teams use JSON Schema validation rules directly within MongoDB to define expected types, required fields and boundary constraints for the payloads that matter. If you want the rule syntax itself - the validator document, bsonType, required and a worked shell example - MongoDB validation rules explained with examples covers that ground; this article is about producing the same rule from a design instead of typing it by hand.
- Enforce strict schema validation rules on core business entities to eliminate data corruption.
- Retain schemaless flexibility in specific subdocuments for polymorphic attributes or dynamic events.
- Standardize document contracts across distributed microservices using centralized validation models.
- Version schema rules alongside application code to maintain backward compatibility.
Applying structural validation rules directly at the collection level delivers the consistency of relational models while preserving NoSQL scaling benefits.
Does MongoDB use collections?
MongoDB stores data in collections rather than traditional relational tables. A collection is a grouping of BSON documents that share a common storage namespace, but MongoDB does not require documents within the same collection to have identical fields or data types.

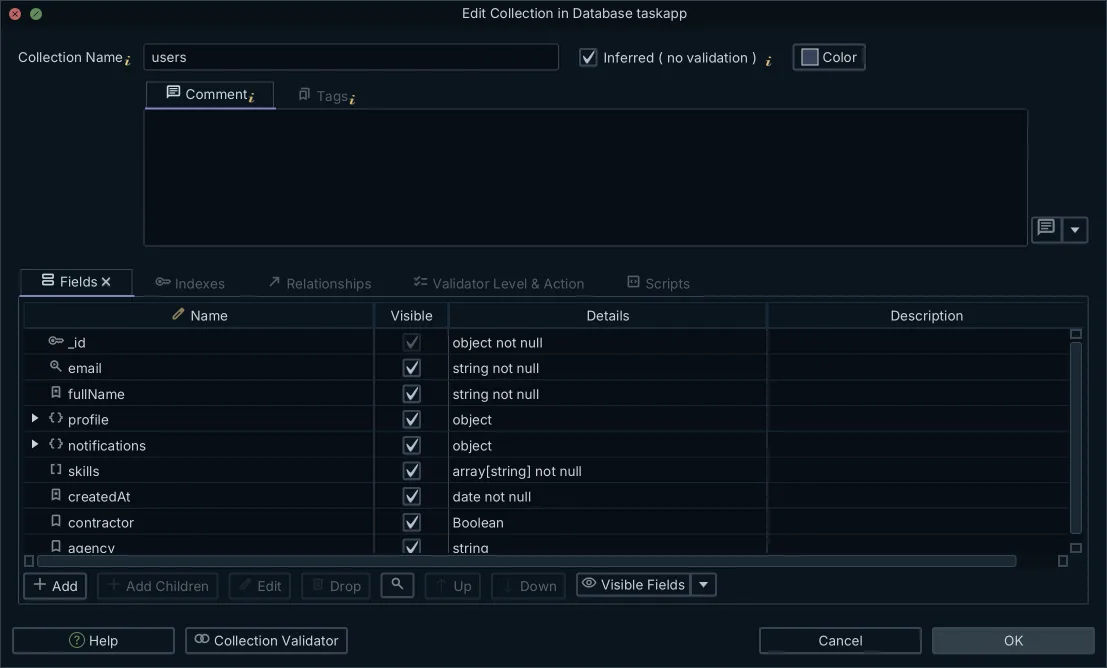

Understanding an existing MongoDB database means reading real documents, because nothing else describes their shape. A schema modeler handles this by sampling a subset of documents per collection rather than scanning every document in the database.
That introspection infers field names, BSON types, nested sub-documents and arrays, and the result is a visual approximation of what your live database currently holds - not a contract the database enforces. The modeler is explicit about the difference: a reverse-engineered collection that carries no validator of its own is marked Inferred ( no validation ) in the Edit Collection dialog, and a document that omits a field the sample suggested was mandatory still inserts. Sampling has a second blind spot worth knowing about. Where the sampled documents disagree about a field's type - a string in some, an array in others - the diagram shows a single type and does not flag the collision.
Developers use these MongoDB database diagrams to analyze nested document hierarchies, discover undocumented attributes, and plan schema refactoring.
Who is MongoDB's biggest competitor?
A unified visual design workspace that models both MongoDB document collections and relational SQL tables in the same project makes engine comparison practical. That modeling layer simplifies schema governance across heterogeneous database stacks.
In the document database sector, MongoDB competes with cloud-native document engines like Amazon DocumentDB and Azure Cosmos DB, as well as relational databases such as PostgreSQL and MySQL that provide native JSON and JSONB column types.
Database Engine Comparison
| Database Engine | Data Model | Schema Enforcement | Primary Architecture |
|---|---|---|---|
| MongoDB | BSON Document Collections | Configurable JSON Schema Rules | Distributed Horizontal Sharding |
| Amazon DocumentDB | BSON Compatible Document Store | JSON Schema Validation | AWS Managed Compute and Storage |
| Azure Cosmos DB | Multi-Model Document Store | Application-Level Contracts | Globally Distributed Managed Service |
| PostgreSQL | Relational Tables with JSONB | Strict DDL and Table Constraints | ACID Relational Core with JSON Indexing |
Each engine offers distinct architectural trade-offs between schema rigidity, query expressiveness, and infrastructure overhead. Visual schema design remains essential across all platforms to maintain clean data contracts.
The situation this solves
Maintaining data consistency across complex NoSQL databases without visual tooling requires writing verbose JSON Schema validator scripts manually. Hand-coded validation definitions are error-prone and difficult to review during team design sessions.

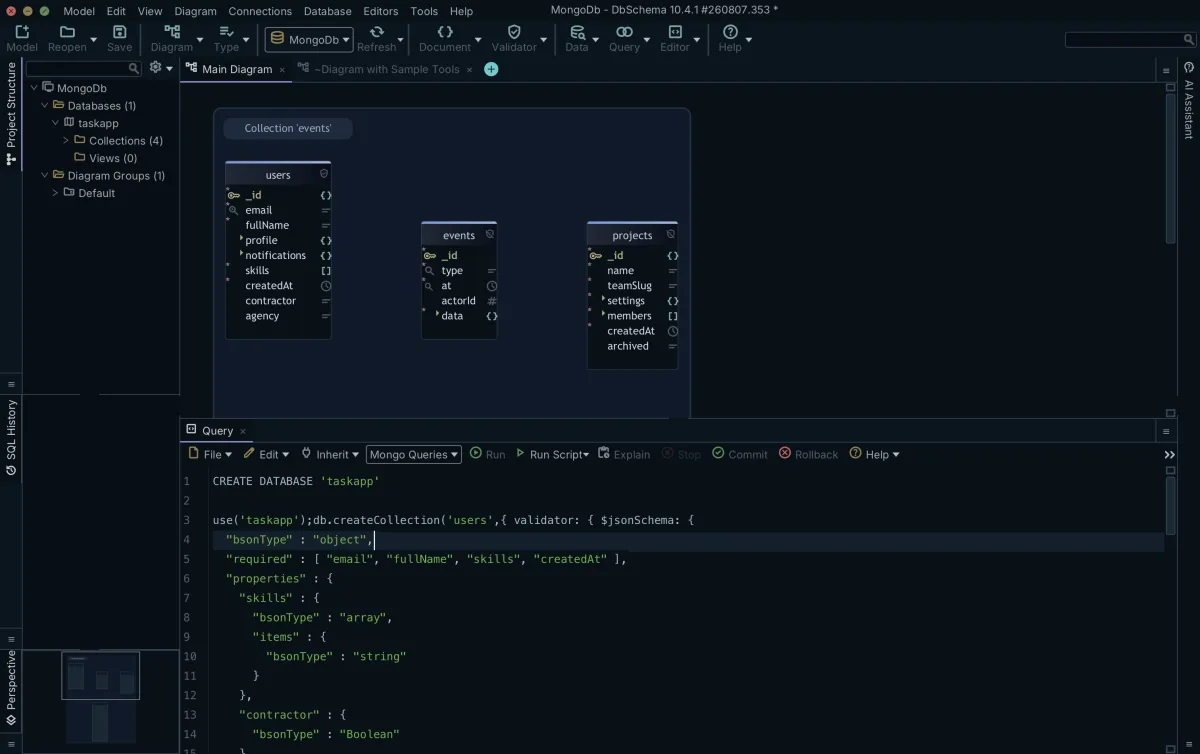

A visual modeler resolves this issue by generating MongoDB validation rules directly from your graphical schema design. MongoDB stores such a rule as a validator on the collection, most often a $jsonSchema[2] document that lists the required fields and a bsonType per field. In DbSchema you define those fields, their BSON types and which of them are mandatory on the diagram; the model then emits exactly that db.createCollection call, followed by a collMod[3] command that sets validationLevel and validationAction.
Two commands on DbSchema's Database menu do the writing: Create or Upgrade the Collection Validators into the Database applies the rules to the connected instance, and Export Schema Validation Script writes them to a file you can review, commit and run yourself. Creating or editing a collection in the modeler saves the validation rule both to the database and to the local model file. Read the exported script before you run it anywhere else - it opens with a CREATE DATABASE statement that belongs to DbSchema's own query editor rather than to mongosh.
Where an existing collection already carries a validation rule, that rule is reverse-engineered as the authoritative structure instead of the sampled approximation.
- Define fields, BSON types and mandatory flags on the diagram instead of hand-writing the JSON Schema around them - though advanced constraints such as minimum, pattern and deeply nested rules still have to be typed into the validator editor or the shell.
- Apply the rules to the connected MongoDB instance from the Database menu, or export the script and put it through review first.
- Synchronize schema rules between local design files and staging or production databases.
- Maintain authoritative schema definitions using collection validation rules rather than sampling approximations.
What to check afterwards
Verify the behavior of the rule you just deployed. MongoDB schema validation[4] runs on insert and update, and how strictly it runs depends on two collection-level settings worth checking before you trust it.
Post-Deployment Validation Checklist
- Execute a test insert with an invalid data type using db.collection.insertOne() to verify that the database rejects non-compliant documents.
- Verify that your collection validationLevel is configured to strict or moderate based on your migration requirements.
- Confirm that validationAction is set to error for production enforcement or warn for testing phases.
- Review the validator definition in the database by querying db.getCollectionInfos({ name: 'yourCollection' }).
Share your design across your engineering team by exporting interactive HTML5 database documentation. The generated documentation includes an interactive vector diagram where collection details and field comments are readable as mouse-over tooltips; that export is a Pro Edition feature.
Keep the exported validation script and the model file in version control alongside the application code. The rule that governs a collection then has a history: a reviewer can see the validator change in the same pull request as the code that depends on it, and you can tell which release tightened which field.
Connect DbSchema to your MongoDB deployment, let it sample the collections and read the diagram it draws: connecting, reverse-engineering, interactive diagrams and the SQL editor are in the free Community Edition, which covers every supported database. Saving that model to a file, designing against it offline and the relational data browse are Pro Edition features, and the 15-day Pro trial covers them. Download DbSchema, open a model against your own database, and generate the validation rules from a design you can actually see.
Frequently asked questions
What is a MongoDB validation rule?
A validation rule is a JSON Schema document MongoDB stores against a collection, under the collection's validator key as $jsonSchema. It declares which fields are required and what BSON type each one may hold, so inserts and updates that break that shape are rejected or merely warned about, depending on the collection's validationLevel and validationAction.
How does a modeling tool infer a MongoDB schema?
Because MongoDB enforces no schema of its own, DbSchema reverse-engineers the structure by sampling a subset of documents per collection rather than reading all of them. That gives a visual approximation of your collections, nested objects and arrays - an approximation MongoDB does not enforce. A collection with no validator of its own is marked Inferred ( no validation ) in the Edit Collection dialog.
What happens if a collection already has validation rules?
Where a collection carries a validation rule, that rule is reverse-engineered as the authoritative structure instead of the sampled approximation. Any edits to the collection then write the updated rule back to the database.
Can MongoDB enforce foreign keys between collections?
No, MongoDB does not declare or enforce foreign keys. However, you can use virtual relations in your design model to represent these links visually. These virtual foreign keys enable multi-collection data exploration within the tool.
Does an inferred structure enforce anything in MongoDB?
No. Sampling produces a model-side approximation, and a reverse-engineered collection that carries no validator of its own is marked Inferred ( no validation ). Nothing is enforced until a validator is written to the collection - by creating or editing the collection in the modeler, or by running the exported validation script against the database.
