Building a Query Across Joined Tables Visually
What is a visual query builder?
A visual query builder is a graphical interface that generates SQL queries through a drag-and-drop canvas rather than manual syntax entry. Data analysts frequently need to combine analytical metrics with internal business data. For example, marketing analysts export the clicks and impressions trends that the Google Search Console search performance report breaks down by query, page, and country[1] and merge those records with transactional database tables such as customer signups, subscriptions, and revenue.
Hand-writing a multi-table SQL query across four or more entities requires tracking primary-foreign key relationships, explicit column aliases, and join filters manually. A single misplaced comma or mismatched join condition returns incorrect datasets or fails to execute entirely. Visual query builders eliminate this friction by inspecting the schema metadata, identifying relationships automatically, and generating valid SQL in real time as you select fields on screen.
Modern visual query builders act as an interactive starting point. You construct complex SELECT statements visually, inspect the real-time generated SQL dialect, and transfer the statement directly to a query editor for execution without writing repetitive join syntax from scratch.
- Eliminate multi-table join syntax friction across complex normalized schemas.
- Generate vendor-compliant SQL in real time with automated column aliasing.
- Provide an interactive canvas that syncs visual selections directly with the underlying query code.
How can I visualize a SQL query?
Visualizing a SQL query involves mapping database tables as graphical entities on an interactive design canvas and defining relationships with drawn connectors. You drag tables directly from the schema tree onto the query builder workspace, and each table entity displays its available columns, primary keys, and data types.

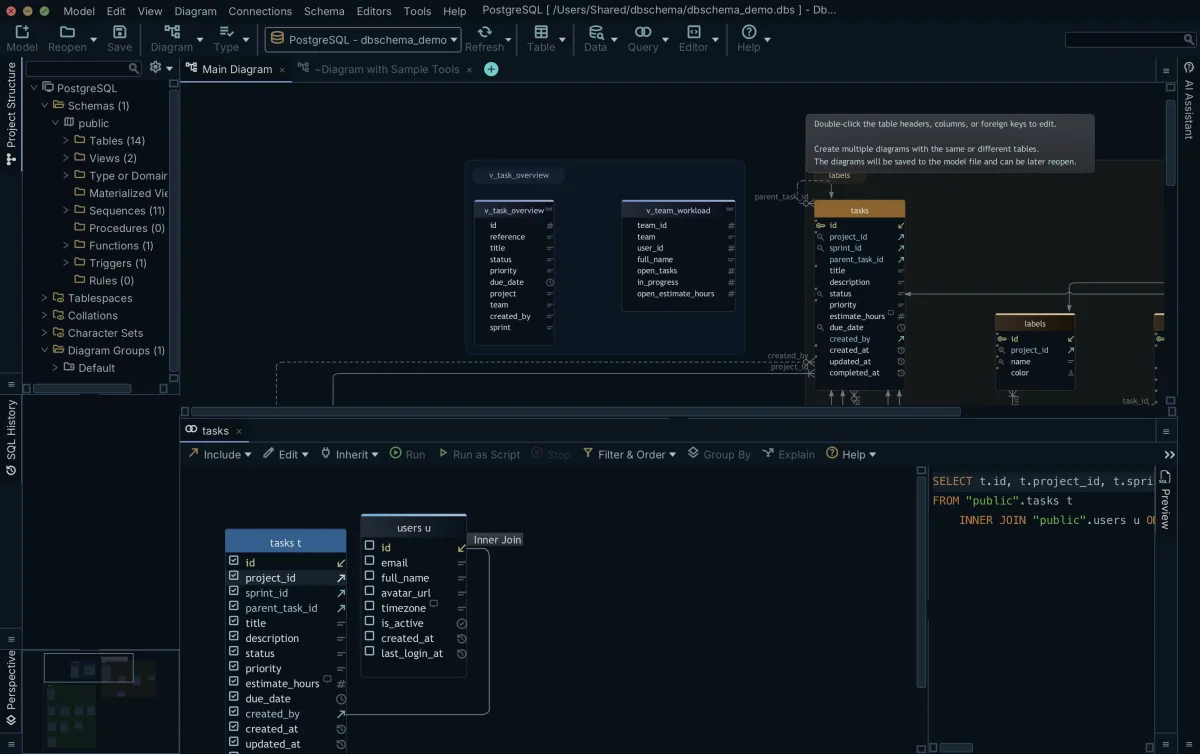

Connect tables by dragging a line from a source column to a target column. When foreign keys already exist in the database catalog, the canvas renders the connector lines automatically. For databases without physical foreign key constraints, you draw virtual foreign keys directly between matching fields to establish logical joins.
Every visual query configuration, layout arrangement, and editor state persists directly inside the offline design model file. When you reopen your project, your entire visual workspace, join definitions, and active query tabs restore immediately without reconnecting to the database.
- Drag required tables from the schema structure pane onto the visual query canvas.
- Select output columns by checking the boxes next to individual field names.
- Draw connector lines between matching columns to establish explicit or virtual join conditions.
- Configure column filters, sort directions, and aggregation functions in the criteria panel.
- Inspect the real-time SQL output generated in the bottom preview pane.
What does a query builder do?
A query builder translates graphical user interactions into standards-compliant SQL statements. In relational terms it assembles a table expression: a FROM clause that is optionally followed by WHERE, GROUP BY, and HAVING clauses, with the select list computing the output rows[2]. When you click checkboxes, select operators, or draw relationship lines, the engine constructs the corresponding SELECT, FROM, JOIN, WHERE, GROUP BY, and ORDER BY clauses.
The engine abstracts complex SQL syntax safely. It manages table aliasing automatically, wraps reserved keywords, formats nested join logic, and ensures that search conditions use valid relational comparison operators. Analysts configure filters such as date ranges, string matches, or numeric thresholds through dropdown menus without remembering engine-specific regex syntax or escaping rules.
Enterprise schemas frequently scale to thousands of tables, views, and indexes. Lightweight tools often struggle to render catalogs of that size. DbSchema holds multiple named diagrams in one model, so an analyst can isolate a sub-schema into its own layout diagram and grow it outwards along the foreign keys.
| Visual Action | Generated SQL Clause | Technical Function |
|---|---|---|
| Checking column boxes | SELECT column_a, column_b | Specifies the projection list of fields returned in the result set. |
| Connecting table keys | INNER JOIN table_b ON table_a.id = table_b.a_id | Sets the ON join condition that decides which rows from the two source tables count as a match. |
| Entering filter values | WHERE created_at >= '2026-01-01' | Applies Boolean search predicates to filter qualifying rows. |
| Selecting aggregate functions | GROUP BY customer_id | Groups rows sharing nominal values for aggregate calculations. |
| Choosing sort order | ORDER BY total_amount DESC | Sorts the final output rows in ascending or descending sequence. |
Which IDE is best for SQL?
The best SQL IDE for data analysts combines visual query construction with strict operational safety safeguards. Analysts require deep access to production replicas and reporting warehouses to extract business intelligence, but direct database access introduces operational risks if a tool permits accidental modifications.
DbSchema distinguishes between the local offline design model and the live physical connection. Working on the offline model files lets an analyst build queries and evaluate data paths without sending a single statement to the server.
We commit to being exact about what DbSchema will and will not do to a live server. The visual query canvas emits SELECT statements only: its toolbar carries Include, Edit, Inherit, Run, Run as Script, Stop, Filter & Order, Group By and Explain, and no DDL verb, so a table cannot be dropped, altered or truncated from the query builder. DbSchema will still run DDL you type yourself into the SQL editor. What protects you there is that the editor does not auto-commit: after Run, the Commit and Rollback buttons light up and the statement sits in an open transaction until you choose one. Schema changes reach the database through the separate schema synchronization step, which shows the generated migration script before anything executes.
- A visual query canvas that generates SELECT statements and carries no DDL verb.
- Clear separation between the local offline design model and the live database connection.
- A SQL editor that does not auto-commit, so Rollback is still available after Run.
- Driver coverage spanning over 100 SQL and NoSQL databases.
Why use a query builder?
Using a visual query builder prevents costly analytical errors caused by incorrect join selection. In relational databases, listing more than one table in the FROM clause without a join condition cross-joins them, forming the Cartesian product of their rows: if the tables hold N and M rows, the joined table has N * M rows[2].
A cross join matches every row from the first table with every row from the second table, so joining two tables of four rows each already returns 4 x 4 = 16 rows, far more than either original set[3]. Run the same mistake across two large production tables and the result set multiplies out to a size no client can hold: the row explosion exhausts client memory, stalls the database engine, and produces misleading metric summaries.
Visual query builders eliminate Cartesian errors by requiring explicit relational connectors or defaulting to declared foreign key definitions. The visual canvas maps directly to relational logic, making the difference between an inner join and a left outer join immediately apparent.
| Join Type | Visual Canvas Representation | Result Set Behavior | Primary Analytical Use Case |
|---|---|---|---|
| Inner Join | Solid connector line linking matching keys | Produces only the set of records that match in both tables. | Filtering transactions that have confirmed customer records. |
| Left Outer Join | Directed connector pointing to parent table | Produces a complete set of records from the left table with the matching records from the right where available, and null on the right side where there is no match. | Identifying customers who have placed zero orders. |
| Full Outer Join | Bidirectional connector line | Produces the set of all records in both tables, with matching records where available and null on the missing side. | Consolidating disjointed legacy data sources. |
| Cross Join | Unconnected tables in query scope | Joins everything to everything: if the tables have N and M rows, the joined table has N * M rows. | Generating complete permutation matrices and test matrices. |
What is the best SQL visualization tool?
The best SQL visualization tool couples multi-table query generation with deep, interactive data browsing. While basic query generators merely produce text snippets, DbSchema lets an analyst inspect live records directly across related tables without writing repetitive subqueries.

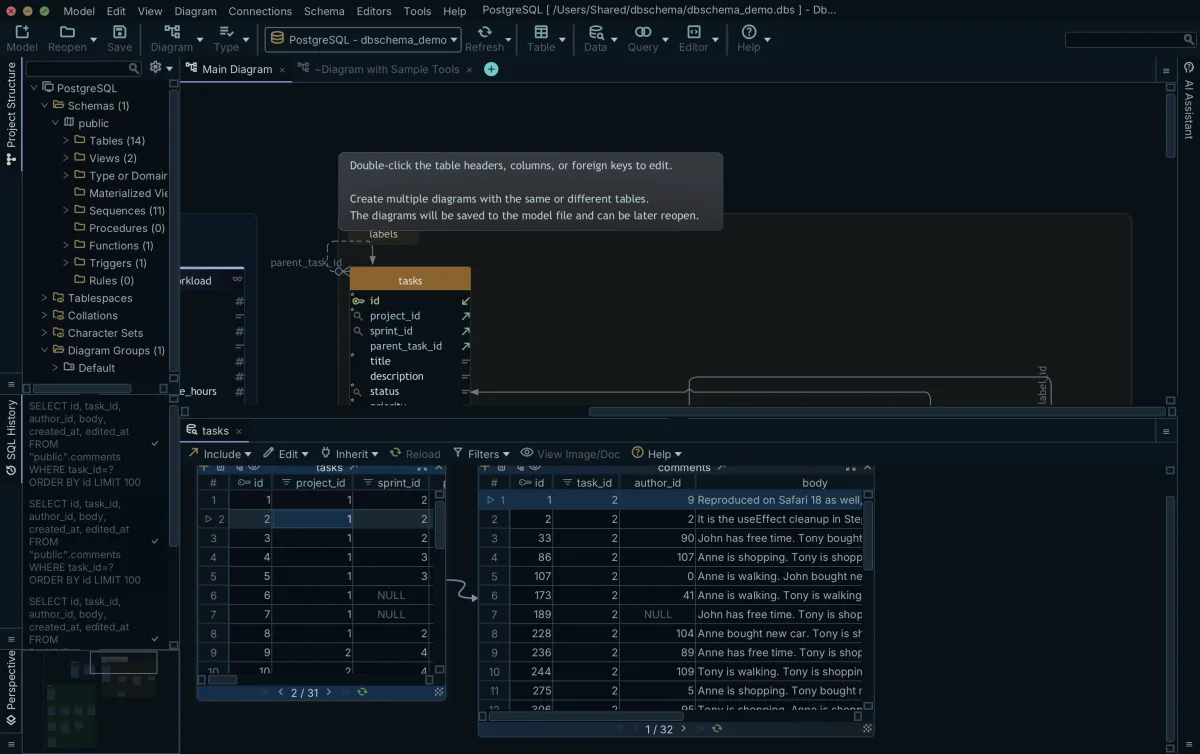

DbSchema's relational data editor lets analysts browse rows across an unlimited number of related tables simultaneously. When you open a root table and attach child entities via foreign keys or virtual relations, selecting a specific record in the parent pane instantly filters all child panes to matching dependent records.
This cascading filter architecture operates through multiple nested tiers. Analysts can trace a customer account to its orders, follow each order into its line items, and inspect the corresponding shipment logs in a single unified view, editing dependent records directly where permissions allow.
- Simultaneous browsing of an unlimited number of related tables side by side.
- Automatic cascading filters that update child table views upon selecting parent records.
- Inline data filtering, sorting, and cell editing directly within the relational grid.
- Support for virtual foreign keys to link tables across schemaless or unconstrained databases.
What are the 5 basic SQL commands?
The five core clauses that form the foundation of relational SQL queries are SELECT, FROM, WHERE, GROUP BY, and ORDER BY, the same clauses the SELECT statement processes in order: FROM elements first, then WHERE filtering, then GROUP BY grouping, then the SELECT output expressions, and finally ORDER BY sorting[4]. Visual query builders map each of these foundational commands directly to intuitive user interface controls on screen.
Checking a column box maps directly to the SELECT clause. Dragging tables onto the canvas defines the FROM and JOIN clauses. Entering criteria into filter fields builds the WHERE clause. Picking an aggregate function in the criteria panel produces the GROUP BY expression, and clicking a column sort arrow sets the ORDER BY direction.
| SQL Clause | Core Function | Visual Interface Control |
|---|---|---|
| SELECT | Specifies the column projection list | Column checkboxes and calculated expression fields |
| FROM | Identifies source tables and join paths | Canvas table entities and relationship connector lines |
| WHERE | Filters rows using Boolean conditions | Criteria filter text boxes and operator dropdowns |
| GROUP BY | Groups rows for aggregate computations | Aggregate function pickers (SUM, COUNT, AVG, MIN, MAX) |
| ORDER BY | Sorts the final result rows | Sort order toggles (Ascending / Descending / Sort Priority) |
Once you finish designing the query on the canvas, the tool hands the generated SQL directly over to the built-in SQL editor. You can execute the statement against your active connection, review the returned tabular data, analyze execution plans, or export the query into reporting scripts.
To build multi-table queries visually, manage complex relational schemas, and explore connected datasets across an unlimited number of related tables, download DbSchema and open the design model against your own database. The visual query builder and relational data browse described here are Pro edition features; the Pro trial runs for 15 days and is extendable by another 15.
Frequently asked questions
Does a visual query builder generate standard SQL?
Yes, it translates your visual diagram connections into standard SELECT statements that run on your database engine. The generated SQL updates in real time and can be copied or executed directly.
How do visual builders handle complex joins?
Click the join-type control on a connector line in DbSchema and it offers Inner Join, Left Join, Full Join, Exists and Not Exists. This visual approach prevents common syntax errors when spelling out a 4-table JOIN and keeps the correct grain.
Can I edit the SQL after building it visually?
Yes. DbSchema hands the generated code to its built-in SQL editor. You own the query once it is generated and can edit the text freely to add subqueries or custom logic.
Is it safe to use query builders on a live database?
Partly, and it is worth being precise. DbSchema's visual query canvas builds SELECT statements and carries no DDL verb, so you cannot drop or alter a table from it. The Relational Data Editor does write - its grid offers Insert Record, Delete Record and Edit Cell - and the SQL editor runs whatever you type. The safeguard is that the SQL editor does not auto-commit, so Run leaves the statement in an open transaction until you press Commit or Rollback.
Do I need to know SQL to explore related data?
No. DbSchema's Relational Data Editor lets you navigate an unlimited number of related tables by clicking through real and virtual foreign keys, cascading the filters automatically without writing any code.
What happens if I use a cross join by mistake?
A cross join creates a Cartesian product, matching every row to every row, so the result set is the row count of one table multiplied by the other. On large tables that multiplication severely impacts performance if it is not filtered correctly.
Sources
Build multi-table queries on a canvas
DbSchema draws the joins from your foreign keys, previews the generated SQL as you tick columns, and hands the statement to a SQL editor that does not auto-commit. The visual query builder and relational data browse are Pro edition features; the Pro trial runs for 15 days.
