Azimutt Alternatives for Offline Schema Work
DbSchema is the strongest Azimutt alternative when the job is offline schema work: it reverse-engineers a live database over JDBC, keeps the design in a local XML model file you can commit to Git, and generates migration scripts from a visual diff. Azimutt remains the better tool for exploring a large, unfamiliar schema in a browser. This guide compares both, along with Liquibase, drawDB and Lucidchart, on offline capability, licensing and price.
What Is the Alternative to Liquibase?
Liquibase is a database change governance platform supporting 65+ databases[2], not a visual schema modeling suite. Database architects seeking an alternative to Liquibase for visual design need a tool that combines offline schema modeling with automated migration script generation. DbSchema lets you design a schema visually and produce the deployment script directly from the offline design model.
How DbSchema Generates Migration Scripts from a Visual Model
While Liquibase automates SQL and XML changelog execution across CI/CD delivery pipelines, it lacks an interactive visual workspace for exploring relationships or drafting new tables. Teams using database migration tools often write raw migration files manually. DbSchema instead lets engineers manipulate entities on an interactive canvas and computes the SQL DDL delta required to update the target database.
- Visual schema modeling: DbSchema creates tables, columns, and foreign keys visually on an interactive canvas, while Liquibase focuses on executing pre-authored changelogs.
- Offline model synchronization: DbSchema compares the local model with a live database to generate SQL migration scripts, bridging visual architecture and automated schema deployment.
- Pipeline integration: Liquibase governs change execution in automated CI/CD workflows, whereas DbSchema focuses on schema planning, design review, and manual diff verification.
DbSchema generates standard SQL migration scripts directly from its offline model file. Architects can review the generated SQL diffs, commit the scripts to version control, or deploy them directly to target databases over JDBC connections.
What Is the Alternative to Lucidchart?
Lucidchart functions as a general-purpose web diagramming tool: it can import tables and schemas from a database connection and generate SQL commands back out of the shapes, but the diagram is a deliverable rather than a model the engine keeps in step with. When database architects require live database reverse engineering into a model that then detects schema drift, generates migration scripts and lives in a local file under version control, DbSchema is the technical alternative.
Static Drawings Versus Connected Schema Models
Lucidchart lets users import SQL DDL statements, or connect to a DBMS and upload their tables and schemas, to generate entity relationship shapes on its canvas, and it generates the SQL commands for MySQL, PostgreSQL, SQL Server or Oracle back out of the finished diagram. What it does not do is keep that diagram in step with the database afterwards: Lucidchart cannot identify schema drift, and cannot generate a migration script when table structures change.
- Live database introspection: DbSchema connects directly to SQL and NoSQL engines to reverse-engineer schemas into an editable model, while a Lucidchart import produces diagram shapes.
- Schema synchronization: DbSchema tracks differences between the visual design and the physical database, whereas Lucidchart diagrams remain static once drawn.
- Stakeholder communication: Lucidchart excels at high-level architecture presentations for non-technical stakeholders, and you can draw primary and foreign keys on the shapes, but it does not enforce data types or those constraints against a database.
For teams evaluating browser diagramming against desktop engineering tools, Lucidchart suits broad business sketching. When the task requires true schema modeling, data type validation, and version control, architects reach for DbSchema.
The Azimutt Alternatives Shortlist
Selecting an alternative to Azimutt depends on whether your priority is web-based schema exploration, open-source diagramming, or complete offline schema modeling. Azimutt is an open-source database explorer built to help engineers understand large, existing database schemas in the browser[3], while DbSchema leads on local file-based design.
Top Candidates for Visual Database Modeling
The core shortlist for visual database design covers three options: DbSchema, Azimutt itself, and the open-source browser canvas drawDB. Each tool targets a specific phase of the database lifecycle:
| Tool | Primary Focus | Architecture | Key Capability |
|---|---|---|---|
| DbSchema | Offline visual schema design & deployment | Offline-first desktop application | Local XML model, JDBC sync, interactive HTML5 documentation |
| Azimutt | Web-based schema exploration & analysis | Web application with local CLI / Docker | Relation path finding, Azimutt Markup Language (AML) |
| drawDB | Quick browser entity-relationship diagramming | Open-source web application, self-hostable with Docker | Canvas table drafting, SQL DDL import and export |
While open-source tools like drawDB offer lightweight browser diagramming with no account required to start[4], enterprise architects evaluating database design tools need what DbSchema provides: deep multi-engine support, Git-backed file versioning, and direct schema synchronization.
How Each Tool Handles Offline Schema Work
True offline schema modeling requires inspecting, modifying, and documenting database schemas without an active internet connection or external cloud service. DbSchema saves the entire design model into a local, human-readable XML file (.dbs), whereas Azimutt is primarily built around a web application runtime.
Local XML Persistence Versus Web CLI Runtimes

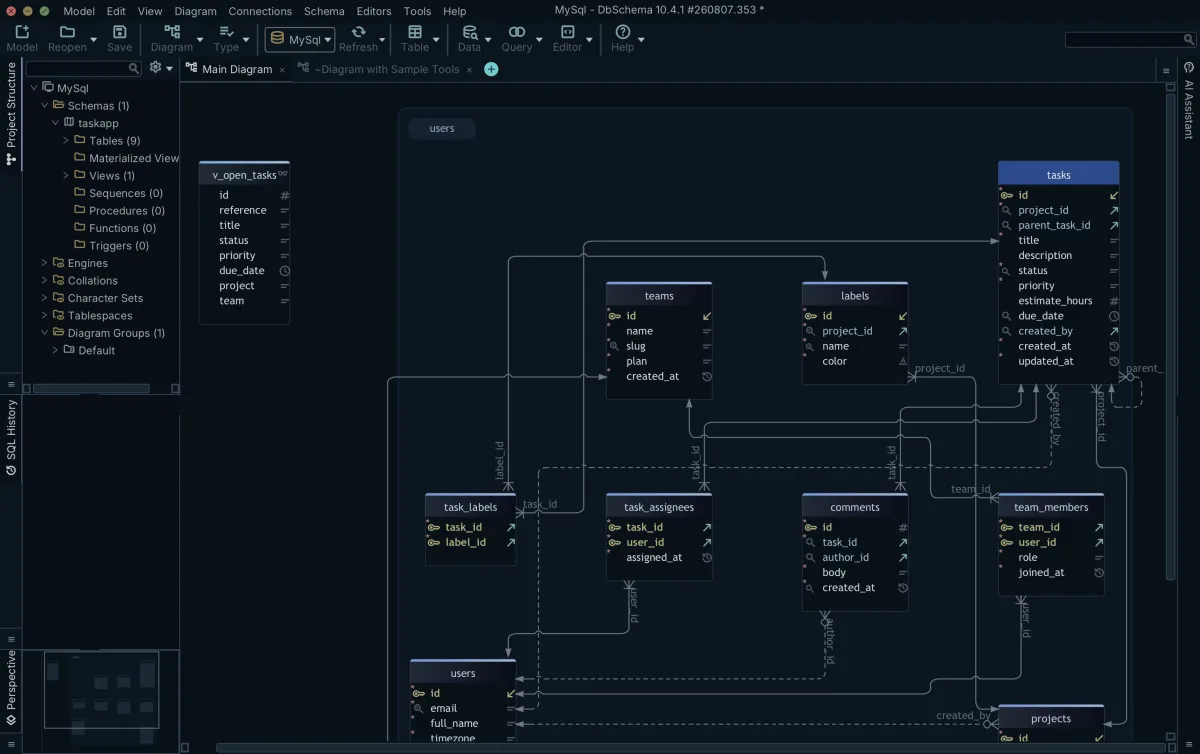

DbSchema lets architects work with no connection at all. You can open a .dbs model file on a disconnected machine, create new tables, edit foreign keys, and organize complex layouts into multiple diagram views. That offline design mode stores layout coordinates, column comments, virtual foreign keys, and diagram groups and callouts in plain XML, making it fully compatible with Git version control.
Azimutt approaches offline exploration by requiring users to run a local Node CLI command (npx azimutt explore $db_url) or deploy a self-hosted Docker container. Schema modifications in Azimutt rely on Azimutt Markup Language (AML), a concise text-based DSL. Azimutt's browser interface is fast and responsive when tracing relationships across hundreds of interconnected tables in legacy monoliths.
- File-based persistence: DbSchema saves models as standalone XML files on your local filesystem without requiring background server processes.
- Git collaboration: those model files can be committed, diffed, and merged in Git repositories by multiple team members.
- Ad-hoc exploration: Azimutt provides rapid relationship pathfinding in web browsers, making it effective for on-the-fly table discovery.
When working in restricted network environments or air-gapped systems, DbSchema's desktop architecture eliminates the overhead of running local Node runtimes or managing browser storage limits.

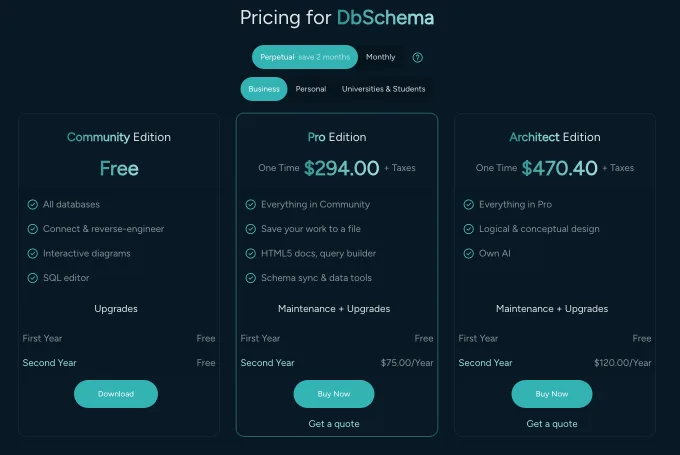

Pricing and Licensing Compared
Pricing models across database modeling tools range from free open-source software to perpetual desktop licenses and recurring SaaS subscriptions. Evaluating licensing costs requires checking offline capabilities, maintenance renewals, and multi-user team options.
| Product | Pricing Model | Starting price (in US dollars) | Licensing Terms |
|---|---|---|---|
| DbSchema Community Edition | Free | Free | Free tier covering all supported database engines, reverse engineering, interactive diagrams and the SQL editor |
| DbSchema Pro Edition | Perpetual one-time or monthly | $294.00 one time plus taxes | Adds save-to-file offline design, HTML5 docs, query builder and schema sync; first year of maintenance and upgrades free, optional renewal at $75.00/year after that |
| DbSchema Architect Edition | Perpetual one-time or monthly | $470.40 one time plus taxes | Everything in Pro plus database-independent logical and conceptual design; first year of maintenance free, optional renewal at $120.00/year after that |
| Azimutt Free / Solo / Team | Subscription | Free to start | Free plan for exploration with no long-term save; Solo at 7 EUR per month and Team at 35 EUR per user per month add design, export, analysis and collaboration |
| drawDB OSS / Pro | Open-source / Cloud | Free (open source) | Full editor free in the browser with no account required; paid Pro subscription adds cloud storage, teams and real-time collaboration |
| Liquibase Secure | Enterprise subscription | Quote-based | Starter, Growth, Business and Enterprise tiers scoped by number of applications and database types |
Perpetual Desktop Licensing Versus Recurring Subscriptions
DbSchema is sold as a perpetual commercial licence with the first full year of maintenance and upgrades included, and a monthly option is also available. DbSchema Pro Edition is the entry paid tier at $294.00 one time plus taxes, with an optional maintenance renewal at $75.00 a year after the first: it unlocks saving your work to a file for offline design, schema synchronization, interactive HTML5 documentation, the visual query builder, and relational data browsing. Every DbSchema figure on this page is the Business perpetual price in US dollars, taken from the Business tab; the pricing page localises to your own currency and also publishes separate Personal and Universities & Students tabs, so check the current figures there before you buy[1].
DbSchema Architect Edition sits above Pro at $470.40 one time plus taxes and adds database-independent conceptual and logical design that can be migrated to a physical model, with the first year of maintenance and upgrades included and an optional renewal at $120.00 a year[1]. Because the licence is bought once rather than rented, the cost behaves as a predictable one-off rather than a mandatory SaaS subscription.
Who Each Tool Is Actually For
Each tool in this comparison serves a distinct role in the software engineering and database management ecosystem. Selecting the best platform depends on your team responsibilities and workflow requirements.
Matching Tools to Engineering Roles
- DbSchema: designed for database architects, DBAs, and backend software engineers who need offline visual schema modeling, Git-based XML versioning, live database schema synchronization, and multi-table data exploration across SQL and NoSQL engines.
- Azimutt: built for developers, architects, DBAs, data analysts and product managers who need to explore, search, and navigate large monoliths or many microservice schemas in a web browser[3].
- drawDB: ideal for frontend developers, students, and educators who need a quick, zero-install browser canvas to sketch database tables and import or export SQL scripts[4].
- Lucidchart: suited for product managers, enterprise architects, and business analysts who need to draw broad architecture diagrams and present conceptual workflows to non-technical stakeholders.
- Liquibase: tailored for DevOps and platform teams implementing automated database change governance and compliance tracking inside CI/CD deployment pipelines[2].
Database architects managing production data models benefit most from DbSchema, which bridges visual modeling and physical database deployments.
Choosing Your Offline Schema Workflow
Engineering teams often combine complementary tools to handle different stages of database development. You can deploy Azimutt for rapid web exploration of unfamiliar monoliths, rely on Liquibase for automated change execution in deployment pipelines, and keep DbSchema for visual schema design and migration script generation.
Team Collaboration with Floating Licenses
For enterprise architecture teams that need shared access without buying dedicated seats for occasional modelers, the DbSchema Architect Floating License offers a concurrent licensing model. It is published at $1,168.00 one time plus taxes in US dollars, shared across the team with concurrent users limited to the purchased quantity, and includes one year of updates with an optional $280.00 annual renewal[1].
Pick the tool by the job: Azimutt to read an unfamiliar schema quickly, Liquibase to govern change in the pipeline, and DbSchema to design the schema offline and generate the migration script that goes with it.
Frequently asked questions
What is the main difference between Azimutt and DbSchema?
Azimutt is a web-based database explorer optimized for searching and visualizing large, existing schemas. DbSchema is an offline-first desktop tool that lets you visually design schemas from scratch, reverse-engineer live databases, and synchronize structural changes.
Can I use Azimutt offline?
Yes, you can run Azimutt locally via Docker or its npx CLI, but its native environment is a browser tab. DbSchema operates entirely offline by default, saving your work in local XML model files.
Is Lucidchart a good alternative for database design?
Lucidchart imports SQL and can pull tables and schemas from a database connection, and it generates SQL commands back out of the diagram, which makes it great for high-level presentations. However, it is a drawing application: it does not detect schema drift, does not generate migration scripts when structures change, and the diagram does not stay synced with your database.
Does Liquibase offer visual schema modeling?
No, Liquibase is a database change governance and CI/CD platform that tracks changes across 65+ databases using changelogs. For visual modeling, architects use a design tool to generate the scripts that Liquibase then executes.
How does drawDB compare for offline schema work?
drawDB is a widely used open-source browser editor that builds diagrams, imports and exports SQL scripts, and generates migrations without an account. It is excellent for quick sketches, but it has no direct JDBC connectivity or interactive HTML5 documentation.
Sources
You can download DbSchema and open your model offline against your own database - the Community Edition covers reverse-engineering and interactive diagrams, and DbSchema Pro Edition unlocks the offline model file, schema synchronization and interactive HTML5 documentation.
Design your schema offline, then sync it
DbSchema reverse-engineers your database over JDBC, keeps the design in a local XML model file you can commit to Git, and generates the migration script from a visual diff.
