Why Version a Schema at All
Examples of Database Schema Versioning
Schema versioning records incremental DDL modifications to database structures over time, creating an auditable history in source control. When an engineering team adds a column, index, or foreign key constraint, versioning ensures that every deployment environment applies identical definitions. That keeps database environments consistent across development, testing, and production, and it makes out-of-process changes (drift, where the actual state differs from the version-controlled state) detectable[1].
Adding a Column to an Existing Table
Consider an e-commerce platform that adds multi-factor authentication to its user accounts. The backend engineering team needs to add an is_mfa_enabled boolean flag to the users table. Without version control, a developer might run an ALTER TABLE statement directly on a staging database and omit it from the production deployment runbook. That discrepancy causes production API queries to fail immediately when the application expects the new column.
Storing the database structure as a declarative design file eliminates this risk. The design model is saved as a plain XML .dbs file that tracks table attributes, relations, and diagram layouts. When you save a change, Git tracks the exact line diff just like application source code.
- Modify the table definition in the local design model file or migration repository.
- Review the visual and textual XML diff in a pull request before merging to the main branch.
- Generate the corresponding DDL migration script to apply the change to target databases, following the same review rules as any other safe migration script.
- Execute the script against automated CI/CD test databases before running it on production.

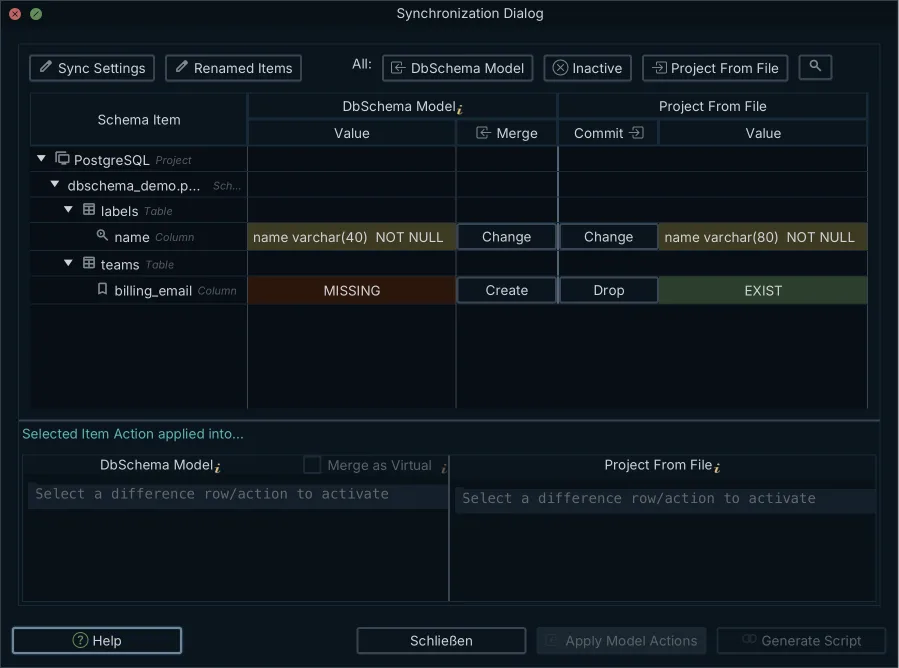

Reviewing a Git diff for a .dbs model file makes the structural change explicit. Adding the is_mfa_enabled flag to the users table shows up as a single added element, with the before state on the minus line and the after state on the plus line: before, the table element ends with <column name="password_hash" type="varchar" length="255" mandatory="true" />; after, the diff adds + <column name="is_mfa_enabled" type="boolean" mandatory="true" defaultValue="false" /> immediately below it. A reviewer can read the attribute name, data type, default value, and nullability constraint straight off the diff, then approve or reject the change before any DDL touches a live database.
Semantic Versioning in Simple Terms
Semantic Versioning (SemVer) is a formal versioning specification built around a three-part version number, MAJOR.MINOR.PATCH, whose increments convey what changed and whether the change is backward compatible[2]. It establishes a predictable contract between software producers and consumers to prevent dependency conflicts.
The MAJOR.MINOR.PATCH Breakdown
| SemVer Segment | Increment Condition | Compatibility Impact | Example Change |
|---|---|---|---|
| MAJOR (X.0.0) | Incompatible API changes | Breaking change; downstream consumers must update integration logic | Removing a public endpoint or altering return types |
| MINOR (0.Y.0) | New functionality added in a backward compatible manner | Non-breaking; existing integrations continue functioning without modification | Adding a new optional query parameter or endpoint |
| PATCH (0.0.Z) | Backward compatible bug fixes | Non-breaking; fixes internal flaws without changing the interface contract | Correcting an edge-case calculation error |
Software package managers rely on SemVer to resolve dependencies automatically. An application specifying a dependency constraint of ^2.1.0 can safely pull version 2.4.1 because minor and patch increments guarantee backward compatibility. This framework works reliably for stateless application binaries and libraries, but persistent data stores introduce structural constraints that require a different approach.
Three Types of Database Schemas
The word schema is used broadly, but it commonly refers to three types: a conceptual schema, a logical schema, and a physical schema[3]. This three-tier framework helps engineering teams translate high-level business requirements into operational disk storage structures.
The Three Structural Levels
- Conceptual Schema: Offers a big-picture view of what the system will contain, how it will be organized, and which business rules are involved, usually produced while gathering initial project requirements[3]. In practice that means naming core entities such as Customers, Orders, and Products.
- Logical Schema: Defines schema objects such as table names, field names, entity relationships, and integrity constraints, but does not typically include technical requirements[3]. It is where normalization rules and domain constraints are settled.
- Physical Schema: Adds the technical information the logical schema lacks, including the syntax used to create those structures within disk storage[3]. In engine terms that covers column data types, storage engines, indexing strategies, partition schemes, and dialect-specific DDL.
Version control must be strictly enforced at the physical schema level. While conceptual and logical models guide architectural discussions and data governance, the physical schema dictates the exact DDL executed against production instances. Discrepancies at the physical level lead directly to runtime SQL syntax errors, broken queries, and deployment pipeline failures.
The Core Meaning of Schema Versioning
Database version control means applying version numbers to snapshot states of a database schema, then systematically managing those versioned changes so teams can track, apply, and revert them with precision[1]. Done properly it creates an audit trail of every table creation, column modification, index addition, and constraint adjustment across all environments.
Statefulness vs. Stateless Application Code
Versioning a database schema differs fundamentally from versioning stateless application code. When an engineer updates an application microservice, deploying a new release replaces the running container or binary. If the deployment fails, the orchestrator reverts to the prior container image instantly.
| Dimension | Application Code Versioning | Database Schema Versioning |
|---|---|---|
| Persistence | Stateless; ephemeral binaries replaced on each deployment | Stateful; live table data must survive every structural transition |
| Rollback Mechanism | Instant redeployment of previous container image or binary | Complex compensating DDL migration scripts required to preserve data |
| Concurrency | Multiple versions can run in parallel during canary rollouts | Single storage engine shared across active application instances |
| Failure Risk | Application crash or error response | Irrecoverable data loss from updates that accidentally drop or delete data |
Because database tables hold persistent customer and transactional records, you cannot discard an old schema state and replace it from scratch in production. Every schema change represents an in-place transformation. Tracking these states systematically in source control ensures teams know the exact schema version of every deployed database instance.
How to Handle Schema Versioning
Handling database schema versioning requires a repeatable, structured workflow that integrates database changes into your software development lifecycle. DORA is explicit on the mechanics: keep all database schema changes in version control together with the application code they belong to, and use a tool that records which changes have been run against which environments and what the results were[4]. In practice that breaks into four operational phases: planning, reviewing, approving, and deploying.
The Four Phases of Schema Change Management
- Planning: Model the required schema adjustments in a local design file or migration script. Determine whether the change is additive (such as adding a nullable column) or destructive (such as dropping a column or modifying a data type).
- Reviewing: Open a pull request containing the updated model file or migration script. Inspect index choices, constraint names, locking implications, and backward compatibility with active application versions.
- Approving: Require formal sign-off from designated database administrators or senior backend engineers. Validate that the change conforms to schema naming conventions and operational standards.
- Deploying: Execute the versioned migration scripts against target environments sequentially, promoting from development to staging and then to production.

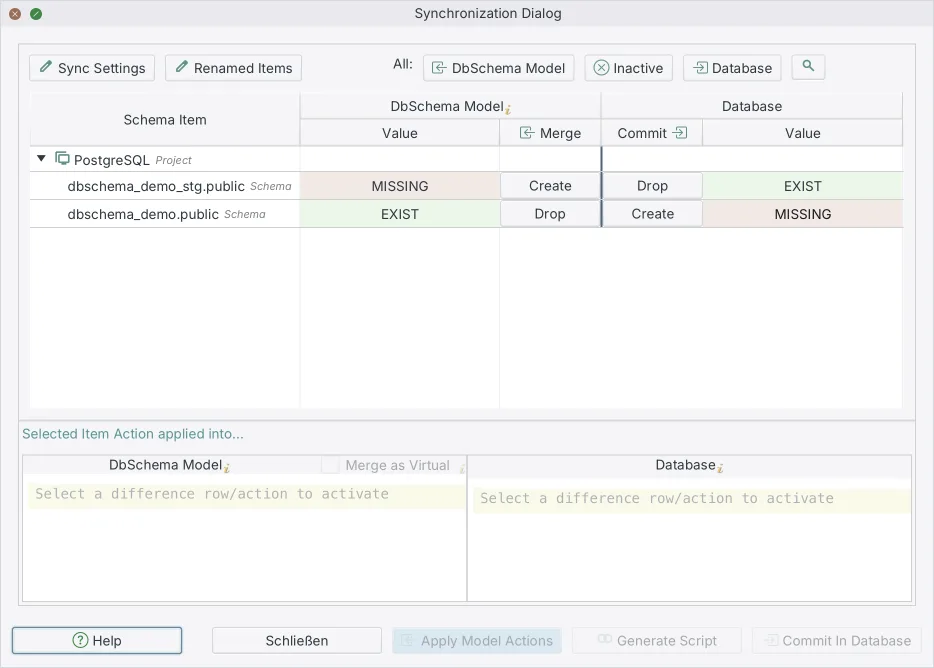

To transition a database safely between two schema versions, teams compare the target design state with the current live database to generate an idempotent migration script. Tools that perform visual schema comparison let engineers inspect differences side by side and generate precise ALTER statements, keeping environments synchronized, which is the practical work of comparing two database schemas.
Why Semantic Versioning Falls Short
Standard Semantic Versioning works effectively for stateless software libraries, but it creates operational friction when applied directly to stateful database schemas. In application software, marking a public API as deprecated is a minor-version event, so old and new consumers can coexist until a future major release removes the obsolete code[2]. Databases do not have that luxury because columns and tables hold persistent data.
Structural Constraints of Stateful Data
Dropping a deprecated column in a database physically deletes all underlying customer data. If an engineering team attempts to follow strict SemVer by batching breaking changes into major version increments, database deployments become massive, high-risk events that require extended maintenance windows and complex rollbacks.
- Tight Coupling: Application instances and the database schema must remain compatible during rolling zero-downtime deployments, where old and new application versions run simultaneously.
- Data Retention: Dropped columns or tables cannot be restored by simply switching version tags in source control once physical records have been purged.
- Transition Complexity: Safe schema evolution requires multi-step patterns such as expand and contract, where columns are added, populated, synced via dual-writes, and only dropped after all services have updated.
Because of these physical constraints, engineering teams typically adopt migration-sequence versioning (such as timestamp-based or sequential migration scripts) alongside declarative model files rather than relying solely on a simple SemVer tag for the database.
The Operational Bottlenecks Versioning Solves
Manual, ad-hoc database changes create severe operational bottlenecks that stall engineering velocity. Citing Google Cloud's DevOps Research and Assessment (DORA) team and its 2024 Accelerate State of DevOps Report, Liquibase notes that elite DevOps performers are 3.4 times more likely to incorporate database change management into their process than low performers[1].
Eliminating Drift and Deployment Failures
When database modifications bypass version control, environments diverge rapidly. A hotfix applied directly to production without being recorded in the repository creates hidden schema drift, causing subsequent scheduled deployments to fail unexpectedly. Treating schemas as code in source control keeps those untracked edits out of the pipeline and establishes a canonical source of truth for the entire engineering organization, which starts with putting the database schema in Git.
- Predictable Deployments: Automated CI/CD pipelines apply validated migration scripts with zero manual intervention.
- Immediate Drift Detection: Comparing the design model against live databases instantly highlights uncommitted schema discrepancies.
- Collaborative Code Reviews: Engineering leads inspect structural changes, indexes, and constraints directly in Git pull requests.
- Complete Audit Compliance: Every schema modification is linked to a specific commit, author, and pull request.
DbSchema models, versions, and deploys schemas across more than 100 relational and NoSQL engines. Download it from dbschema.com/download.html, connect to your database, and reverse-engineer the schema into a design model you can read as a diagram. The free Community Edition covers connecting, reverse-engineering, interactive diagrams and the SQL editor; saving that model to a .dbs file, Git collaboration, schema synchronization and migration script generation are Pro Edition features.
Frequently asked questions
What is database version control?
Database version control applies version numbers to snapshot states of a database schema, allowing teams to track and apply changes systematically. This ensures that database environments remain consistent across development, testing, and production stages.
Why do databases need version control?
Databases hold state, making them a highly valuable asset. Without version control, manual schema changes become a bottleneck that delays application releases. Versioning ensures changes are traceable and prevents unintended data loss.
How does schema drift impact data reliability?
Schema drift occurs when unexpected structural changes accumulate outside version control. Unmanaged drift causes pipeline failures, leading to broken downstream applications, inaccurate analytics, and data integrity issues.
What is a schema migration script?
A migration script is a set of SQL commands generated between two versions of a schema design. It applies the necessary structural changes, like adding columns or indexes, to transition a database from one state to the next safely.
Why is semantic versioning challenging for databases?
Semantic versioning is built for application code, where older APIs can be deprecated easily. Because databases store state, dropping an old schema structure often means deleting data, which requires complex migration and backward-compatibility strategies instead.
How does Git integrate with database schema versioning?
Git tracks the database design model as a plain XML file, allowing developers to review structural differences in a pull request. This workflow treats the schema as code, providing an audit trail for every column and table modification.
