Turning a Schema Diff Into a Safe Migration Script

What is a Migration Script?

A schema migration script is an explicit, versioned SQL file containing Data Definition Language (DDL) and Data Manipulation Language (DML) statements designed to transition a database schema from its current state to a target structure. It provides deterministic, reproducible instructions that alter tables, columns, indexes, and constraints while preserving existing business data. Modern database migration tools apply these files in strict chronological sequence to keep multi-environment databases synchronized.

Database lifecycle management relies on two contrasting methodologies: migration-based approaches and state-based approaches. State-based tools compare a target schema definition against the live catalog and generate synchronization DDL on the fly. Migration-based approaches record every architectural modification as an immutable, numbered script committed alongside application code: Flyway, for example, assigns each versioned migration a unique version and a checksum, applies it exactly once in version order, and treats already-applied scripts as immutable[1]. This gives teams an audit trail and the capability to replay schema evolution sequentially across development, staging, and production.

• Migration-based deployments: Execute pre-tested, immutable SQL scripts sequentially to guarantee identical structural transitions across every stage of your delivery pipeline.
• State-based deployments: Compare an end-state model directly against a live database catalog to compute changes dynamically at deployment time.
• Historical auditability: Maintain changelog tables (such as schema_version) inside the database catalog to record exactly when each migration executed, who initiated it, and its execution hash.

Tracking your migrations as discrete files eliminates discrepancies between environments. When each change is scripted and reviewed prior to execution, database administrators can verify indexing strategies, evaluate locking implications, and ensure zero-downtime compatibility before applying changes to production engines.

The Situation This Solves

Schema drift occurs when database structures in production diverge from version control or local development environments. Manual hotfixes, out-of-process index additions, and uncoordinated application deployments create untracked differences. When a deployment script executes against a drifted database, operations fail due to missing columns, conflicting data types, or violated foreign key constraints.

Manual schema management introduces operational hazards for database administrators. Running ad hoc DDL statements directly against active databases risks deadlocks, table locks that block concurrent transactions, and accidental data loss. Without a verified schema diff, teams cannot determine whether a target environment is prepared to receive incoming application changes.

• Prevents race conditions: Validates the target catalog structure before executing DDL, avoiding locking conflicts on busy transactional tables.
• Eliminates unrecorded hotfixes: Surfaces manual changes applied directly to staging or production so you can fold them back into version control.
• Protects production uptime: Replaces blind, manual DDL execution with inspected, automated migration scripts that enforce strict transaction boundaries.
• Enables safe local development: Allows engineers to design models in offline design mode before generating target-specific DDL for live databases.

Generating a structured diff between your intended schema model and the live database eliminates these risks. It provides a visual and scripted verification checkpoint, ensuring every alter statement is inspected, validated against dependencies, and tested before execution.

What Are the 4 Types of Migration?

Database migration projects fall into four distinct operational categories. While schema changes often trigger cascading updates across the rest of the stack, identifying the specific migration type determines the required testing strategy, downtime window, and rollback plan.

Schema migration serves as the foundation for modern database deployments. When table structures or constraints change, the application layer must update its queries and Object-Relational Mapping (ORM) models to match the new physical architecture. Coordinating schema changes alongside data and application updates ensures continuous backward compatibility throughout deployment cycles.

What Are the 6 Phases of Migration?

Executing a reliable database migration requires following a standardized six-phase lifecycle. Bypassing validation steps or running untested scripts directly in production risks silent data corruption and unexpected service outages.

1. Explore and assess the source: Introspect the existing database catalog, review data volumes, identify non-standard data types, and check existing foreign keys and dependencies.
2. Define the target design architecture: Construct the new physical model, establish naming conventions, normalize or denormalize tables as required, and document constraints.
3. Build the migration solution: Generate the deterministic DDL and DML scripts, set up staging transformation logic, and verify rollback procedures.
4. Test the integration against production-scale data: Run the migration scripts against a staging clone that mirrors production volume to measure lock durations and detect edge-case failures.
5. Execute the live deployment switch: Apply the migration script within an isolated transaction using safe connection timeouts and strict lock parameters.
6. Audit and validate the migrated state: Compare row counts, verify index health, execute integrity checks, and validate application read and write operations.

Testing against a full-scale copy of production data in phase four is essential. Synthetic or truncated datasets fail to reveal lock escalation thresholds, backfill duration bottlenecks, or silent data truncation issues that emerge when processing billions of real records.

How to Generate a Migration File

DbSchema saves the complete database design model as a plain XML document inside a single .dbs file. Because the file stores tables, column specifications, indexes, foreign keys, and layout metadata as human-readable XML tags, it integrates directly with Git repositories. Database administrators and engineers can commit changes to version control, branch features, and conduct peer code reviews on schema modifications. Saving the model to a file is a Pro feature, and DbSchema ships a built-in Git client under Model > Git Collaboration with Clone, Pull, Push, Branch and a Model History view.

Comparing two Git branches or commits highlights every structural modification without requiring an active database connection. The diff shows added tables, altered column nullability, modified data types, and new indexes in plain text. You can review the exact XML differences before generating the corresponding DDL statements.

• Plain XML structure: Encodes tables, data types, primary keys, and virtual foreign keys in an open, human-readable format.
• Native Git versioning: Track schema revisions across branches, review merge requests, and resolve structural conflicts with standard version control tooling.
• Offline comparison: Diff two versions of a design model file on your local workstation without accessing live infrastructure.

Below is an example of an XML diff from a .dbs project file, showing the addition of an active column and an index to an existing customer table:

  <table name="customers" spec="" >
     <column name="id" type="int4" jt="4" mandatory="y" />
     <column name="email" type="varchar" length="255" jt="12" mandatory="y" />
     <column name="created_at" type="timestamptz" jt="93" mandatory="y" />
+    <column name="active" type="bool" jt="16" mandatory="y" defo="true" />
     <index name="pk_customers" unique="PRIMARY_KEY" >
       <column name="id" />
     </index>
+    <index name="idx_customers_active" unique="NORMAL" >
+      <column name="active" />
+    </index>
   </table>

Reviewing the XML diff allows the team to confirm data types and default values before any SQL statement is created. Once the pull request is approved and merged, you can translate the model state into target-specific SQL DDL.

How to Generate a SQL Script

Translating visual or model-level schema changes into executable SQL requires comparing the design model against the target database catalog. DbSchema works as a schema comparison tool that lets database administrators inspect structural differences across engines and generate the exact migration DDL.

The schema synchronization workflow follows a direct inspection process:

1. Connect to the target database: Establish a JDBC connection to your development, staging, or production instance.

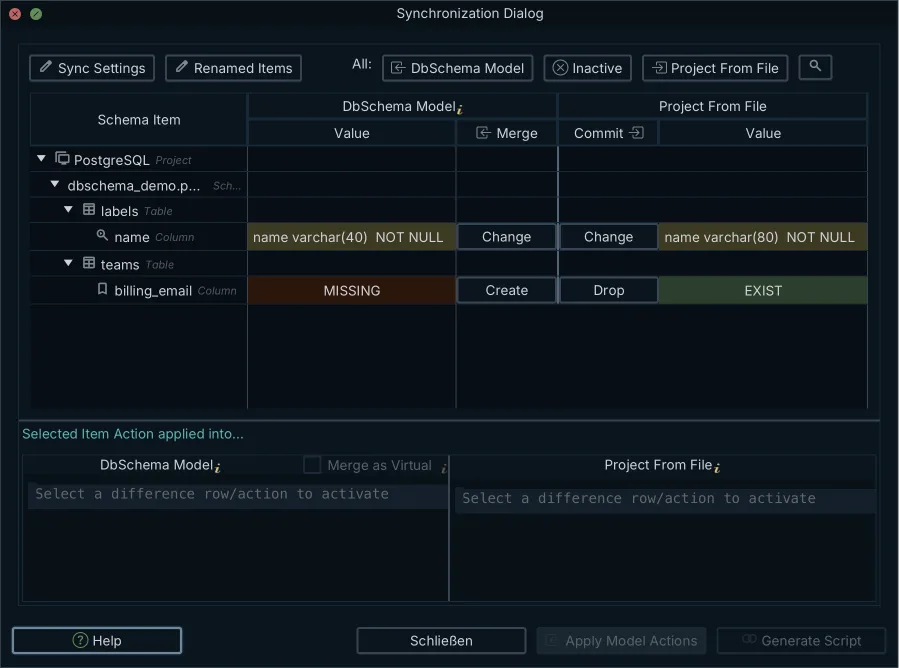

2. Initiate schema comparison: Compare the local offline design model against the live catalog metadata.
3. Inspect side-by-side differences: Review the visual diff interface showing missing tables, modified columns, updated data types, and altered foreign keys.
4. Choose synchronization direction: Select which changes to apply to the database, which to pull into the design model, and which to ignore.

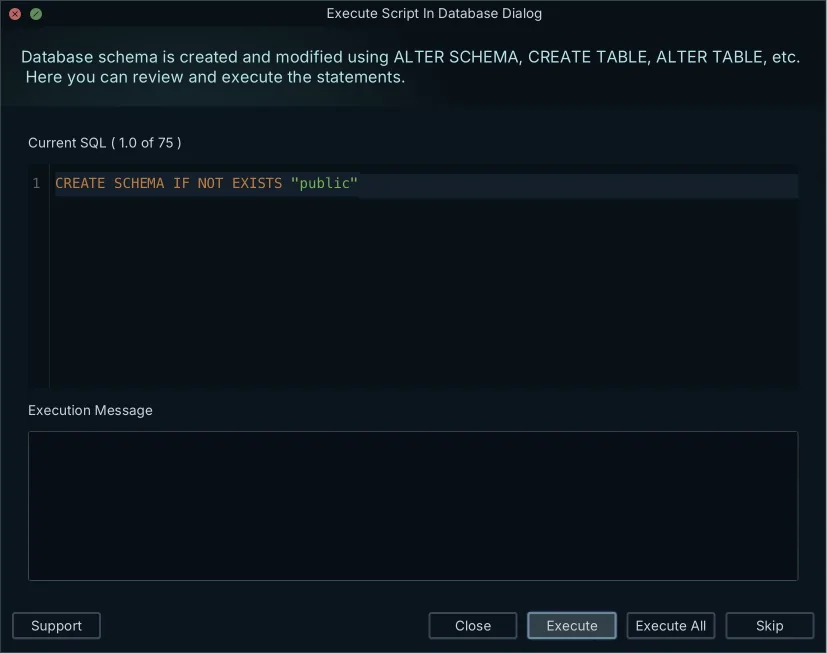

5. Generate migration SQL: Export the generated DDL script to an executable SQL file for review, testing, or automated deployment.

DbSchema generates target-specific SQL tailored to your database dialect, whether you deploy to PostgreSQL, MySQL, SQL Server, or Oracle. You can inspect the generated ALTER TABLE, CREATE INDEX, and ADD CONSTRAINT statements, verify statement ordering, and save the file into your migration deployment pipeline. Two limits are worth knowing before you trust that output. The generated script opens in a read-only viewer, so a statement that fails cannot be corrected in place: you can execute it, skip it, or close the dialog and fix the model. And DbSchema identifies a schema by catalog name as well as schema name, so comparing dbschema_demo.public against dbschema_demo_stg.public reports every object as missing rather than as drift. Compare across servers that use the same catalog and schema names, or reverse-engineer each side into its own .dbs file and use Compare Model with Other Model From File.

How to Run a Migration Script Safely

Running migration scripts against live production systems requires strict zero-downtime design patterns. The Expand-Migrate-Contract pattern, also known as parallel change, breaks backward-incompatible schema changes into three non-breaking phases[2]. In the expand phase, you add new columns or tables alongside existing structures without removing old fields. In the migrate phase, the application writes to both fields while a background process backfills old records. In the contract phase, after all application instances point to the new structure, you safely drop the deprecated columns.

To protect high-throughput databases during DDL execution, always set a strict lock timeout before running alter statements. Every lock in PostgreSQL has a queue: an ALTER TABLE waiting for an ACCESS EXCLUSIVE lock sits behind an active read transaction, and any statement that arrives after it, including a plain SELECT, is blocked behind the waiting DDL[3]. Configuring a low lock timeout ensures the migration statement fails fast rather than causing connection pool exhaustion.

• Enforce low lock timeouts: Set lock_timeout to a small value, such as 50ms, so blocked DDL aborts immediately rather than stalling application traffic[4].
• Implement retry loops: Because PostgreSQL provides no mechanism to automatically retry a statement that exceeded its lock_timeout, wrap migration executions in retry logic with backoff that attempts the DDL again during quieter periods[3].
• Run index creation concurrently: Use CREATE INDEX CONCURRENTLY in PostgreSQL to build indexes without taking exclusive table read or write locks.
• Batch backfill operations: Update historical data in small, indexed chunks rather than a single statement, to avoid prolonged transaction locks and replication lag.

Read the generated script for destructive statements before you run any of it. A schema comparison expresses a column that is in the database but not in the model as a DROP COLUMN, and a narrowed type as an ALTER that can truncate the values already stored, so a diff that looks tidy in the tree view can still be a one-way change once it executes. Split the script along that line: apply the additive statements first, confirm the application works against them, and hold every DROP and every narrowing ALTER back until the expand and migrate phases are finished. Check the statement order for the same reason, because a foreign key cannot be added before the table it references exists.

Deploying database changes safely requires inspecting structural differences before executing SQL against live environments. Download DbSchema, open your design model against your development or staging database, and generate the migration script from the differences it reports. Schema synchronization, and saving the design model to a .dbs file, are part of the Pro edition; the Community edition connects to your database, reverse-engineers the schema and draws the diagram, which is enough to see the drift but not to generate the script.

Frequently asked questions

What is a database schema migration script?

A schema migration script is a versioned SQL file containing explicit DDL statements (like CREATE, ALTER, or DROP) that safely transition a database structure from its current state to a new architecture.

What are the 4 types of database migration?

Migrations fall into four categories: schema migrations that restructure tables, data migrations that move records, application migrations that rewrite queries, and infrastructure migrations that shift the database engine.

What are the 6 phases of database migration?

The six standard phases are exploring and assessing the source, defining the target design, building the solution, testing the changes with a production copy, executing the live switch, and auditing the results.

How do you generate a migration file?

You generate a migration file by comparing two schema states. In DbSchema, the design model is stored as a plain XML file tracked in Git, allowing administrators to compare branches and visualize the exact structural diffs.

How do you generate a SQL script from a diff?

Using a schema synchronization tool, you compare the offline XML model against a live database. The tool highlights the exact differences and generates the precise SQL migration script needed to deploy those changes.

How do you run a migration script safely?

Safe execution requires decoupling structural changes from data backfills using the Expand-Migrate-Contract pattern. Administrators should also configure strict lock timeouts so scripts fail early rather than causing downtime.
