How to Choose a Database Documentation Tool
Key takeaways
- DbSchema covers all five criteria this guide scores on: offline modelling, interactive export, version control, engine coverage, and licensing model.
- Licensing is the criterion teams forget: a perpetual licence and an annual subscription diverge sharply over a three-year horizon.
- Engine coverage decides more than brand preference — a SQL Server-only documenter forces a second tool on a mixed estate.
- DataGrip, DBeaver, dbForge Documenter, MySQL Workbench and dbdocs each give up at least one of the five by design.
- Test the criteria against your own schema before you buy, not against a vendor's demo database.
What a documentation tool has to do
Choose a database documentation tool on five criteria: offline modelling, interactive export, version control, engine coverage, and licensing model. Of the tools compared here, DbSchema is the one that covers all five; DataGrip, DBeaver, dbForge Documenter, MySQL Workbench and dbdocs each give up at least one by design.
This guide is about how to choose, not which tool is most popular. If you want a ranked shortlist instead, read Best Database Documentation Tools — this page gives you the criteria to judge that shortlist against, and the questions to ask before a purchase order goes out.
A documentation tool earns its place by introspecting the schema automatically and producing an artefact somebody else can read: table structures, column types, foreign key constraints, and field-level comments. Tools that only render a diagram on screen leave you maintaining a second, manual copy of the truth.
Database architects managing enterprise systems require documentation solutions that capture both structural definitions and operational relationships. As schemas expand across relational and NoSQL engines, documentation must reflect logical models, explicit primary and foreign keys, and virtual relationships that exist only in application code. Modern software teams treat documentation as a core operational asset rather than a static post-project deliverable.
A dedicated database documentation tool indexes schema metadata to expose table dependencies and prevent breaking changes during deployments. By indexing system catalogs, these tools allow database administrators and software engineers to query relationships, track migration histories, and verify column nullability across environments.
- Reverse-engineer schema structures directly from live database instances or offline model files.
- Export searchable interactive HTML5 documentation with embedded vector diagrams and tooltip annotations.
- Document schemaless document stores like MongoDB by inferring schemas from sampled JSON or BSON records.
- Track schema evolution over time by storing model definitions in Git version control alongside application code.
Maintaining clear schema documentation reduces onboarding friction for backend software developers and prevents catastrophic production errors. When architects establish a design-first workflow, schema changes are modeled offline, reviewed in version control, and generated as updated web documentation before executing migration scripts against live database targets.
The five criteria to score tools against
Selecting an enterprise database management tool requires evaluating specific architectural capabilities across database engines, licensing models, and team workflows. Database architects must distinguish between code-centric execution environments designed for executing ad-hoc SQL queries and specialized modeling tools built for visual schema architecture and documentation generation.
Relational databases enforce strict foreign key constraints, while document stores like MongoDB rely on application-level conventions. A versatile documentation tool must support both paradigms, providing native driver connectivity, reverse engineering, and virtual relationship mapping.
| Evaluation Criteria | Architectural Requirement | Primary Team Benefit |
|---|---|---|
| Offline Modeling | Design schema in local XML files detached from live databases | Prevents uncommitted breaking changes in production |
| Interactive Documentation | Export searchable HTML5 pages with vector ER diagrams | Enables business stakeholders to explore data dictionaries |
| Version Control | Save schema design models as file-based XML structures in Git | Synchronizes database updates with application releases |
| NoSQL Schema Inference | Introspect document samples to map nested attributes and arrays | Visualizes schemaless collections without manual entry |
Database documentation tools must also fit organizational licensing preferences. Software teams can choose between perpetual desktop licenses with predictable one-time fees and annual subscription models, balancing long-term cost against continuous cloud-hosted updates.
How DbSchema scores against the criteria
DbSchema Pro provides a visual database design environment sold either as a one-time perpetual license (with the first year of upgrades included) or as a monthly subscription, with a higher Architect tier adding logical and conceptual design[1]. DbSchema operates offline using local XML model files, allowing software developers and database administrators to design schema structures without an active database connection.

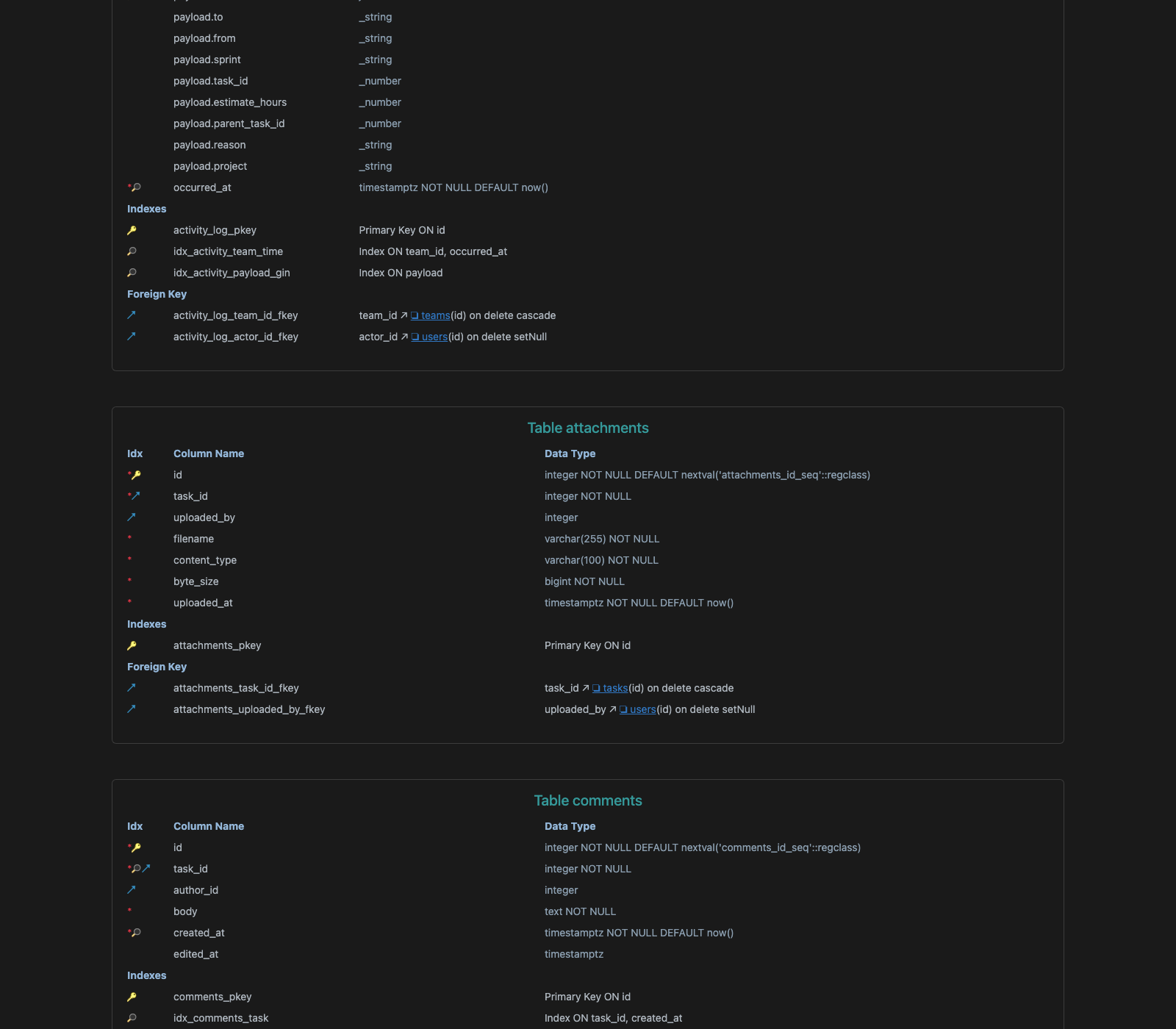

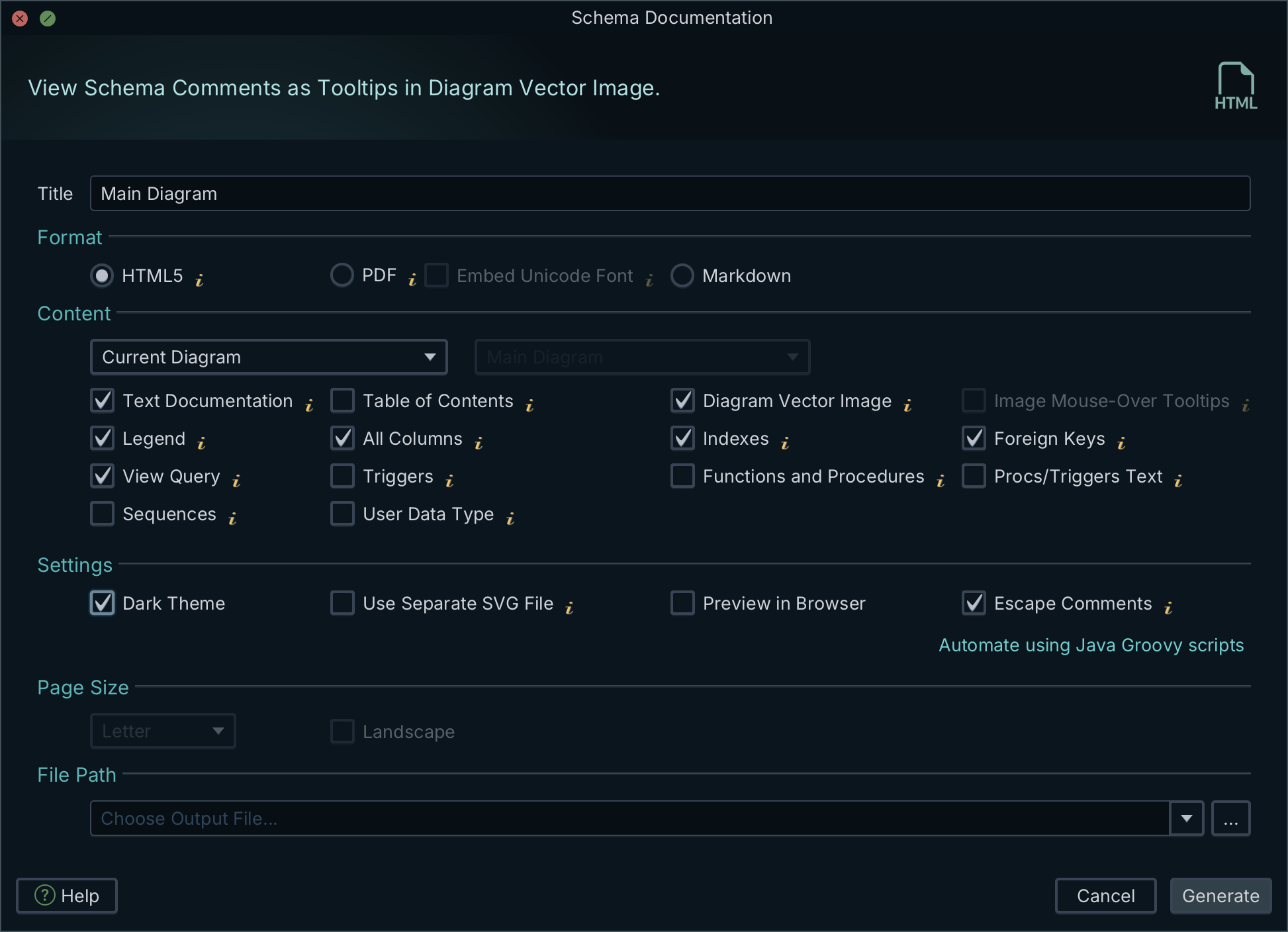

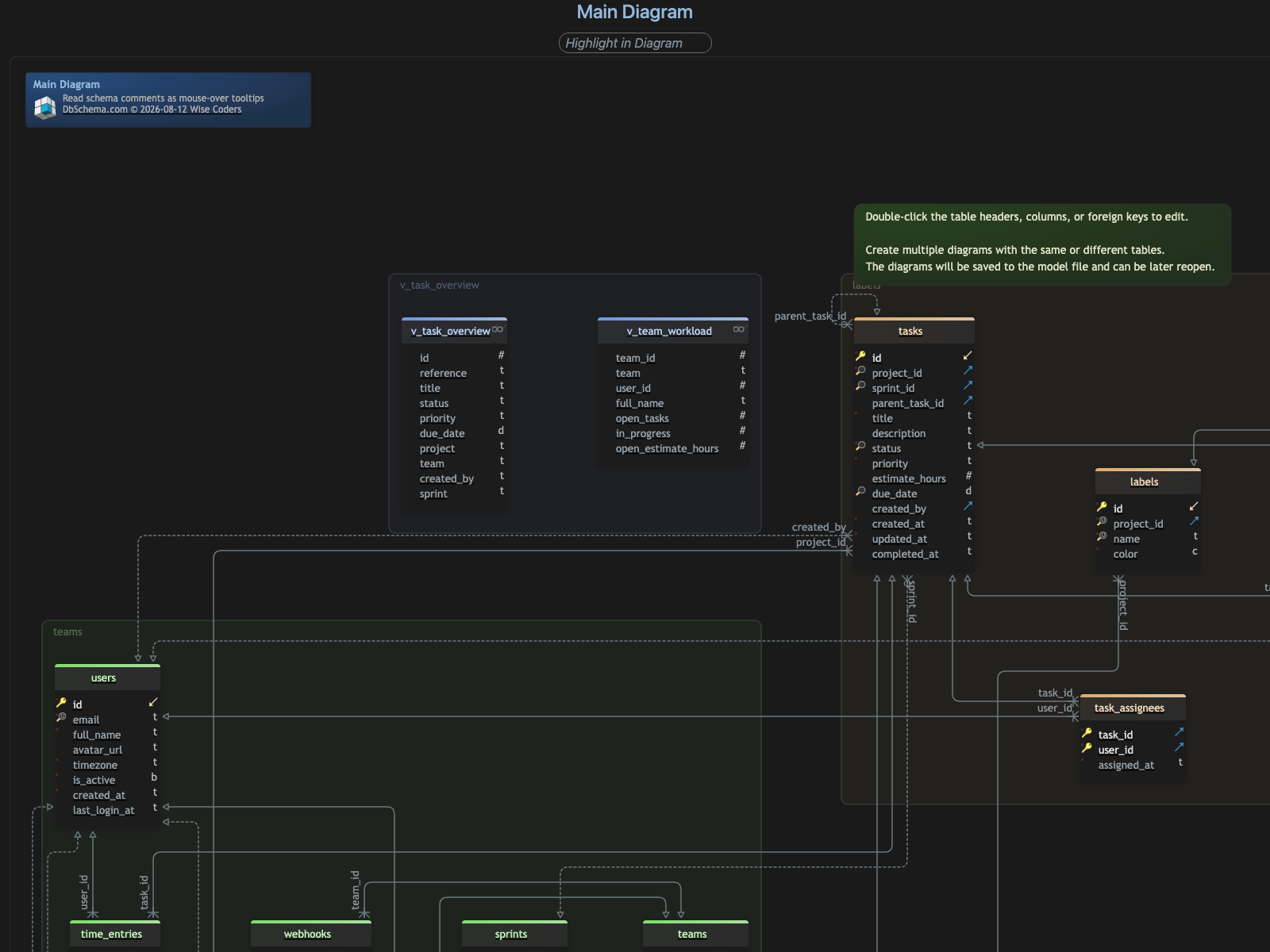

Generate interactive HTML5 database documentation featuring scalable vector ER diagrams directly from the offline model file. Stakeholders can open the exported documentation in any standard web browser, click on tables to highlight relationships, and hover over columns to read field-level comments and BSON type definitions as interactive tooltips.

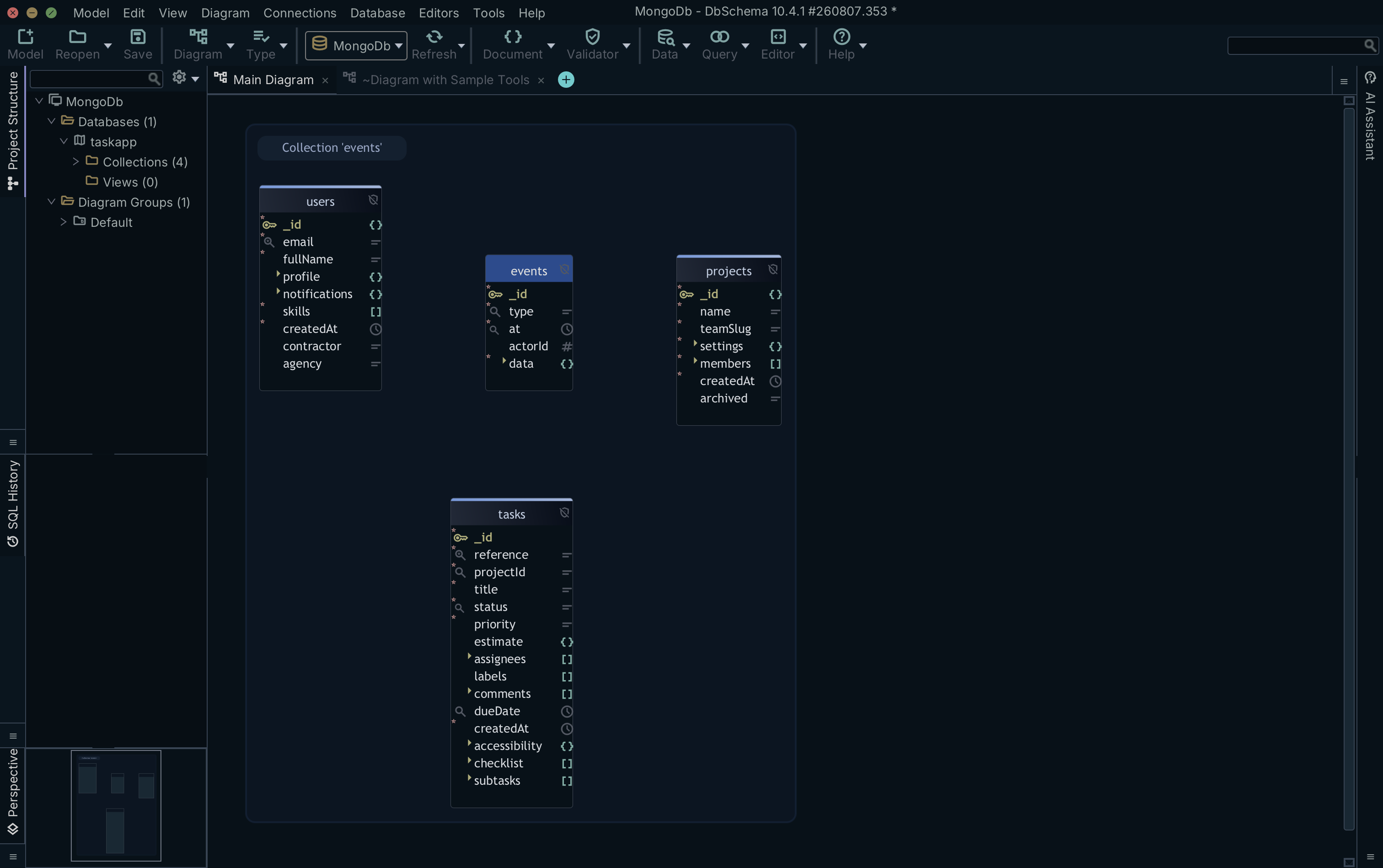

When connecting to MongoDB or other document stores, DbSchema introspects a configurable sample of documents per collection to infer field names, BSON data types, nested objects, and embedded arrays. This inferred structure provides a practical approximation of document contents. Where a collection carries a JSON schema validation rule, DbSchema reverse-engineers that rule as the authoritative schema definition instead of relying on sampled data. Creating or editing collection validation rules in the visual editor writes the syntax back to both the live database and the local XML model file.
Because MongoDB does not enforce foreign keys, database architects can define virtual relations by dragging one field onto another. Drawn as connector lines on the ER diagram, these virtual foreign keys are stored exclusively in the local design model. Utilizing these virtual links, the Relational Data Editor opens multiple collections side by side in connected panes. Selecting a parent document instantly refilters all child panes to matching records, cascading through multi-level collection hierarchies.
- Build interactive ER diagrams visually across SQL and NoSQL engines.
- Review schema diffs in Git before deploying DDL migration scripts.
- Export standalone HTML5 documentation with vector graphics and interactive column comments.
- Explore related data across multiple tables using virtual foreign keys.
DbSchema has a specific focus: it covers visual schema architecture, relational data exploration, and HTML documentation export, but it is a modeling and exploration application rather than a code-focused SQL execution IDE for procedural script debugging or administrative server profiling.
Where DataGrip scores, and where it does not
JetBrains DataGrip is an IDE-first SQL database management tool designed for backend software engineers and developers who prioritize code execution and query optimization. Available under an annual subscription model at €109 per year for an individual developer licence (falling to €87 in year two and €65 from year three), with commercial licences at €259 per year, it provides deep integration with the JetBrains developer ecosystem[2].
DataGrip shines in code navigation, smart SQL code completion, and multi-engine query execution. It allows developers to run complex SQL scripts, inspect query plans, and refactor code across PostgreSQL, MySQL, Oracle, and SQL Server within a unified dark-mode interface.
- Execute ad-hoc SQL queries with context-aware autocomplete and real-time syntax checking.
- Refactor database object names safely across complex SQL scripts and stored procedures.
- Inspect query execution plans and optimize index performance directly inside the editor.
However, DataGrip exhibits clear limitations in database documentation and conceptual visual design. Its auto-generated UML diagrams serve primarily for quick developer navigation rather than stakeholder presentation, lacking standalone interactive HTML5 documentation export with searchable data dictionaries. Teams looking for offline conceptual modeling for business analysts will find DataGrip heavily centered on direct SQL code execution.
Where dbForge Documenter scores, and where it does not
Devart dbForge Documenter for SQL Server is a dedicated documentation generator built for database administrators working in Microsoft SQL Server environments. Devart lists it at $189.95, sold as a subscription or as a perpetual licence, and it also ships inside the wider dbForge SQL Tools bundle of SSMS add-ins[3], automating the creation of comprehensive database documentation.
The software generates searchable documentation in HTML, PDF, and Markdown file formats directly from SQL Server system catalogs. DBAs can customize documentation layouts, add extended properties, and annotate table structures through an integrated interface.
- Automate SQL Server documentation generation using command-line interface scripts.
- Export documentation in searchable HTML, PDF, and Markdown formats.
- Annotate database objects by modifying SQL Server extended properties.
While dbForge Documenter delivers exceptional reporting for SQL Server, its scope remains tightly tied to Microsoft environments and standalone MySQL builds. It lacks cross-platform visual schema modeling, Git-based XML design files, and native diagramming support for NoSQL document stores like MongoDB, requiring multi-database teams to maintain secondary tools.
Where DBeaver scores, and where it does not
DBeaver is an open-source and commercial database administration client widely recognized for its vast array of JDBC and ODBC database drivers. Available as a free open-source Community edition, as well as commercial Lite and Enterprise subscription tiers starting around $11 per month or $113 per year[2], it connects to virtually any SQL or NoSQL database system.
DBeaver excels at universal data administration, allowing DBAs and analysts to browse table records, run ad-hoc queries, and manage database security across diverse database instances from a single desktop installation.
- Connect to over 100 database engines using standard JDBC and ODBC drivers.
- Edit raw table data directly using grid-based relational data editors.
- Export query result sets into CSV, JSON, and XML data formats.
Despite its broad engine support, DBeaver falls short as a dedicated visual modeling and documentation platform. Its visual ER diagrams are basic auto-generated layouts designed for developer inspection rather than published documentation. It lacks standalone interactive HTML5 exports, vector diagram tooltips, and file-based conceptual schema modeling for team database design.
Two narrow fits: MySQL Workbench and dbdocs
Specialized database tools target specific engine environments or code-centric developer workflows. MySQL Workbench offers a completely free, open-source visual modeling tool tailored exclusively to MySQL and MariaDB databases, providing basic ER diagramming, reverse engineering, and schema synchronization.
Conversely, dbdocs introduces a modern, code-first documentation approach powered by Database Markup Language (DBML). Starting with a free tier and offering a Personal Pro plan at $20 per month ($16 per month billed annually) and a Team plan at $60 per month ($50 per month billed annually)[4], dbdocs allows developers to define schemas in lightweight text files and publish web-based documentation through CI/CD build pipelines.
| Database Tool | Primary Target Engine | Licensing Model | Best Architectural Fit |
|---|---|---|---|
| DbSchema (Pro/Architect) | All SQL & NoSQL (100+ engines) | Perpetual one-time or monthly | Visual schema design, HTML5 docs, and Git synchronization |
| JetBrains DataGrip | All relational SQL databases | €109/year personal, €259/year commercial | IDE-centric SQL code writing and query debugging |
| dbForge Documenter | SQL Server & MySQL | From $189.95 | Automated SQL Server HTML and PDF report generation |
| DBeaver PRO | Universal SQL & NoSQL | Free Community / $11 mo PRO | Broad database driver connectivity and table data management |
| dbdocs.io | Agnostic via DBML code | Free tier / $20 mo Personal Pro | Developer-centric code-first documentation in CI/CD |
Choosing the best documentation solution depends on your architectural priorities. For code-heavy SQL debugging, JetBrains DataGrip provides an outstanding execution environment, while dbForge Documenter excels at automated SSMS reports. For software teams that require comprehensive database design tools supporting visual modeling, offline model files, virtual foreign keys, and shareable web documentation, DbSchema delivers a design-first workflow. Connecting, reverse-engineering and the interactive diagrams are in the free Community Edition; saving the model to a file, HTML5 documentation and schema synchronization are Pro features.
Score your own shortlist against these five criteria before committing. Download DbSchema and open the model file against your own database to reverse-engineer interactive ER diagrams, explore multi-table relationships, and export searchable HTML5 documentation.
FAQ
What should I test before buying a documentation tool?
Run the trial against your own schema, not the vendor's sample. Reverse-engineer your largest database, export the documentation, and open it on a machine with no database access — that is the artefact your stakeholders actually receive. Then check whether the model file can be committed to Git and diffed.
How do I compare documentation output between tools?
Export the same schema from each candidate and compare four things: whether the diagram is vector and searchable, whether column comments survive the export, whether the output is a portable file or a hosted page, and whether regenerating it after a schema change is one command or a manual pass. For a ranked shortlist to run this test on, see Best Database Documentation Tools.
What should database documentation include?
Comprehensive documentation must cover tables, columns, primary and foreign keys, relationships, and detailed comments. For NoSQL databases, it should also map inferred virtual relations and document validation rules.
How much do database documentation tools cost?
Pricing varies widely by ecosystem, and the licensing model matters more than the sticker price over a three-year horizon. DbSchema is sold as a one-time perpetual licence or a monthly subscription and has a free Community Edition, dbForge Documenter starts at $189.95, and DBeaver offers subscription plans across its Lite, Enterprise, and Ultimate tiers.
Can you document schemaless databases like MongoDB?
Yes, but engine coverage is exactly the criterion to check. DbSchema samples documents to infer field names and types, representing the structure visually alongside virtual relations, and reads any existing collection validation rule as the authoritative structure. Several documentation tools cover relational engines only.
Should documentation live in the tool or in the repository?
Both, and that is the version-control criterion. Keep the model as a file the tool can save and Git can diff, then treat the exported HTML as a build artefact regenerated from it. Documentation that exists only inside a running application drifts the moment somebody changes the schema without opening that application.
Sources
Score a documentation tool against your own schema
DbSchema reverse-engineers your database into an offline model file, exports HTML5, PDF and Markdown documentation with a vector ER diagram, and keeps the model diffable in Git. Connecting and reverse-engineering are free; documentation export is a Pro feature.
