What Carries Over When You Leave ERwin
DbSchema imports the SQL DDL you forward-engineer out of Erwin Data Modeler, and that script — not Erwin's own XML — is the route, because DbSchema has no Erwin importer. Tables, columns, keys, indexes and constraints come across; the diagram layouts, the diagram groupings and the User-Defined Properties do not, and are the work to budget for. This guide covers the concrete import path, what breaks on the way in, and where DbSchema sits against Liquibase and Lucidchart.
Alternative to Liquibase for Visual Schema Management
DbSchema is the visual alternative to a changelog-driven migration tool: you edit a design model, compare it against the live database, and let DbSchema generate the migration SQL. Liquibase works the other way round, managing database evolution through structured changelog files written in XML, YAML, JSON or SQL, and enforcing disciplined sequential deployments through automated pipelines — but with no integrated visual canvas for interactive schema exploration, live table modeling or graphical difference inspection.

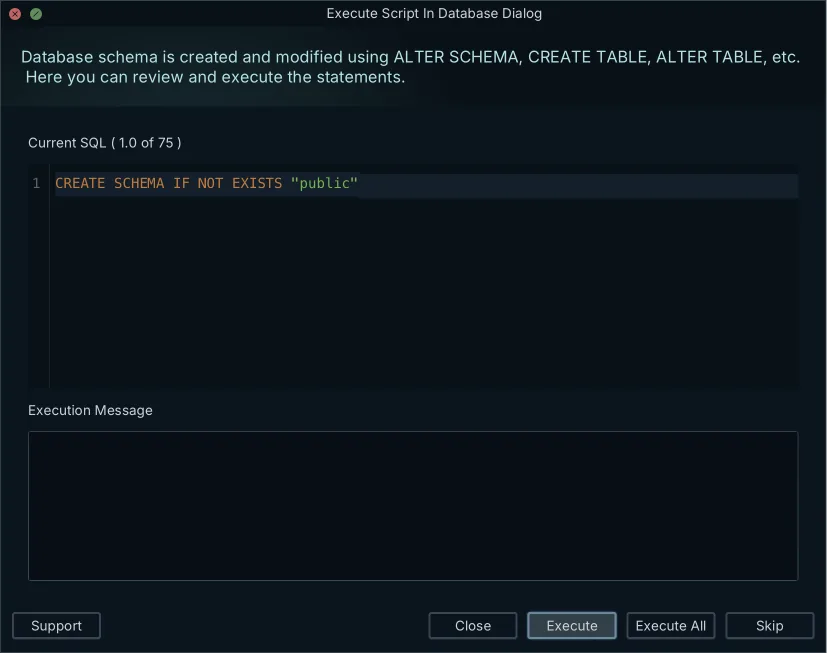

Instead of drafting migration XML changesets or maintaining imperative deployment scripts, database architects work directly on a local visual design model. DbSchema inspects the live database catalog, evaluates structural differences against that offline design model, and generates the targeted SQL migration script from the differences you select.
Comparing Code-Driven and Model-Driven Schema Workflows
Understanding the operational distinctions between code-driven changelogs and visual schema synchronization helps teams select the right deployment strategy for their environments.
| Capability | Model-driven visual tool | Liquibase |
|---|---|---|
| Primary Interface | Interactive visual ER diagram and schema editor | Command-line interface and declarative text files |
| Schema Comparison | Visual two-way diff between local model and live database visual schema diff | Textual change detection and diff change logs |
| Migration Generation | Interactive SQL script generation for selected alterations | Automated changeset generation formatted in XML, YAML, or SQL |
| Offline Modeling | Complete offline schema design with local XML persistence | Requires connection or manual authoring of raw schema changelogs |
| Data Exploration | Integrated multi-table relational data browsing | None (migration and deployment focus only) |
Teams managing complex enterprise databases gain substantial productivity by seeing table relationships graphically while generating deployment scripts, rather than writing abstract configuration files for each altered column.
Alternatives to Lucidchart for Database Design
General diagramming applications like Lucidchart allow teams to sketch Entity Relationship diagrams quickly on a freeform canvas. Lucidchart provides basic shape libraries and lets users import raw SQL DDL to generate static table boxes. Lucid's own ERD page describes a one-way workflow: import a schema onto the canvas, then export the diagram to a MySQL, PostgreSQL, SQL Server or Oracle database. What it does not document is the return leg — reading a live staging or production instance back, diffing it against the diagram, and enforcing relational integrity rules on the canvas itself.
Dedicated database modeling tools deliver capabilities that general vector drawing platforms cannot match. When evaluating Lucidchart alternatives, database architects require tools that distinguish between database-independent conceptual models, logical business structures, and target-specific physical DDL definitions.
Key Architectural Distinctions for Schema Designers
Dedicated database modeling software embeds relational mechanics directly into the design canvas, ensuring diagrams stay technically accurate throughout the project lifecycle.
- Native schema introspection: Connects via standard JDBC drivers to reverse-engineer live database catalogs without manual copy-pasting.
- Bi-directional DDL generation: Exports precise, engine-specific SQL DDL scripts tailored to PostgreSQL, MySQL, Oracle, Snowflake, and other engines.
- Engine-independent logical modeling: Architects design conceptual schemas once and map them cleanly to distinct physical database targets.
- Data type validation: Enforces relational constraints, primary key rules, and foreign key references at the canvas level rather than treating entities as plain text boxes.
While drawing canvases serve conceptual brainstorming, database architects responsible for production systems need modeling tools that understand relational physics and generate executable database structures.
Differences Between Erwin Data Modeler and ER/Studio
Erwin Data Modeler and IDERA ER/Studio represent the traditional heavyweight tier of enterprise data architecture software. Both platforms were established decades ago to help enterprise organizations enforce top-down data governance, manage massive data dictionaries, and document legacy mainframe and relational database estates. They rely heavily on centralized metadata repositories, formal modeling methodologies, and extensive compliance reporting.
Modern engineering environments, however, require faster iteration cycles, lightweight desktop installations, and native integration with distributed version control systems like Git. Legacy suites frequently introduce operational friction: the shared model lives in a dedicated repository server — Erwin's Mart Portal is documented as Windows Server only — and the desktop clients stay Windows-centric. ER/Studio Data Architect installs on Windows alone; Erwin Data Modeler adds a macOS build but still lists no Linux client.
Enterprise Metadata Suites versus Modern Agile Modeling
Comparing traditional modeling suites against modern database design tools highlights contrasting architectural priorities.
| Evaluation Dimension | Erwin Data Modeler / ER/Studio | Modern visual modeling tools |
|---|---|---|
| Storage Architecture | Native model file (.erwin) or a centralized Mart database served by Mart Portal | Local XML project files committed directly to Git |
| Operating System Support | Erwin DM on Windows and macOS, ER/Studio DA on Windows only; no Linux client either side, and Erwin's Mart Portal is Windows Server only | Cross-platform support across macOS, Linux, and Windows |
| Deployment Complexity | Requires dedicated server infrastructure and repository DBAs | Zero infrastructure: lightweight standalone installation |
| Version Control | Proprietary repository locking and check-in workflows | Standard Git branching, merging, and pull request reviews |
| Documentation Export | Static PDF and server-hosted portal reports | Self-contained, interactive HTML5 documentation with vector diagrams |
Agile database teams increasingly move away from monolithic repository servers in favor of file-based design models that integrate directly into continuous integration workflows.
Is Erwin Data Modeler Still Widely Used?
Erwin Data Modeler is still an actively developed product. Quest Software announced its acquisition in January 2021, erwin.com now redirects to Quest's own product pages, and the stable release is 15.2. Quest positions it as the enterprise, on-premises data modeling solution inside its data management platform, alongside data intelligence capabilities such as data catalog, data quality, data literacy and a data marketplace[1]. Its vendor also points to more than 30 years of data modeling heritage behind the product[2] — the first ERwin shipped from Logic Works in May 1993.
Teams that do leave Erwin cite a consistent set of reasons: licensing cost, the administrative overhead of running a centralized model mart, and the lack of developer-friendly workflows for agile sprints. Erwin publishes no list price, so the cost half of that comparison rests on buyer-reported figures rather than on anything quotable.
Core Drivers Prompting Migration Away from Legacy Suites
Architects and engineering leads cite specific operational bottlenecks when initiating replacement projects:
- Opaque licensing: Erwin is sold per seat through a quote rather than a published price list, so a budget owner cannot compare it against a listed alternative without going through sales.
- Heavy infrastructure overhead: Managing dedicated model repository databases requires specialized DBA maintenance and upgrade planning.
- Slow onboarding: Complex, legacy user interfaces present steep learning curves for new backend developers and data engineers.
- Platform gaps: Erwin Data Modeler ships Windows and macOS builds but no Linux client, ER/Studio Data Architect is Windows-only, and Erwin's Mart Portal server must run on Windows Server.
- Disconnection from Git: Binary file formats and proprietary repository locks clash with standard pull request and code review workflows.
Organizations seeking agile alternatives prioritize tools that deliver robust reverse-engineering and visual modeling without enterprise infrastructure overhead.
What Exists in the Source Tool
Erwin Data Modeler projects encapsulate rich collections of data modeling artifacts accumulated across years of enterprise system evolution. An enterprise Erwin Mart or a local .erwin model file contains far more than basic table definitions, incorporating intricate architectural layers and proprietary metadata structures.
Before planning a migration, data architects must audit the specific artifacts stored within the source Erwin environment to determine extraction strategies.
Key Artifacts Stored Within Erwin Projects
An Erwin model typically organizes schema information across several distinct functional layers:
- Physical database artifacts: Concrete table definitions, column names, database-specific data types, primary keys, foreign key constraints, unique indexes, default values, and check constraints.
- Data dictionary definitions: Comprehensive business descriptions, technical definitions, and comments assigned to entities and attributes.
- Logical and conceptual models: Entity-relationship diagrams that abstract business entities away from specific database storage engines.
- Diagram groupings: The sub-diagrams that segment a large enterprise schema into focused operational views.
- User-Defined Properties (UDPs): Custom properties assigned to model object classes to track compliance classifications, data ownership, retention periods or ETL flags. Erwin's own documentation is explicit that "UDPs are not generated into your database".
- Proprietary repository metadata: Model version histories, user access permissions, UDP macros, and physical forward-engineering template files.
Extracting this data means running Erwin's forward-engineering path to generate the physical SQL DDL script. The Metadata Integration wizard is a separate thing — a set of roughly 100 bridges to other metadata tools, whose SQL DDL bridges are import-only — and Erwin's Save As list offers just its native format, its template format and its own XML metamodel.
What Carries Over When You Import the Schema
Migrating from Erwin Data Modeler to a modern visual modeling tool follows a dependable, well-defined technical path. Because database schema structures are universally standardized through SQL DDL, exporting standard physical schema definitions from Erwin and bringing them in via import SQL / DDL transfers the structural database objects the script declares. Verify the result against the source model rather than assuming a clean parse: on DbSchema 10.4.1, a DDL file whose first line is a comment loses its first CREATE TABLE with no warning, and serial columns arrive without their sequence objects.

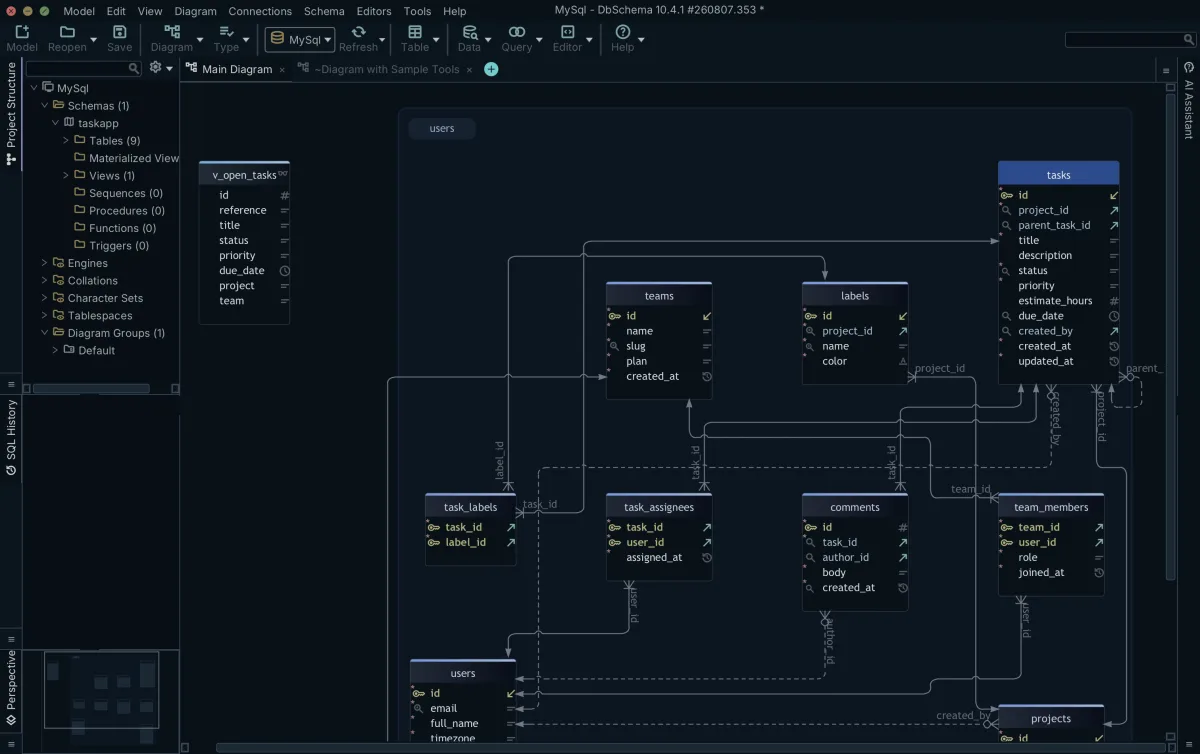

The importer parses the generated DDL scripts to reconstruct the complete physical database architecture inside an offline .dbs file design model. Alternatively, architects can connect directly to the live database catalog to reverse-engineer the schema instantly.
Artifact Transfer Fidelity Matrix
Review the concrete status of standard database artifacts when executing this kind of migration:
| Schema Artifact | Migration Status | Mechanism and Details |
|---|---|---|
| Table Structures | Preserved, with one parser caveat | Recreates tables, column names and nullability flags from the DDL; on 10.4.1 a leading comment line in the script costs you the first CREATE TABLE |
| Data Types | Fully Preserved | Translates target-specific SQL data types accurately for the designated database engine |
| Primary & Foreign Keys | Fully Preserved | Rebuilds primary key constraints and creates visual foreign key connector lines on diagrams |
| Indexes and Constraints | Fully Preserved | Preserves unique constraints, check constraints, default values, and index definitions |
| Comments and Descriptions | Only as far as the script carries them | Table and column comments arrive only if the forward-engineered DDL emits COMMENT ON or the engine's inline comment clause |
| Views, Triggers and Sequences | Mostly preserved | Reconstructs the view, trigger and sequence definitions the script declares; serial columns imported on 10.4.1 produced no separate sequence objects |
Because table schemas and foreign key relationships come across in the DDL, architects keep the structural model without manual SQL re-authoring; column comments follow only when the exported script carries them.
Elements That Require Rebuilding After Migration
While all structural schema elements and data dictionary comments transfer cleanly through SQL DDL, proprietary Erwin presentation metadata and governance tags cannot transfer directly into a new modeling environment. Erwin keeps visual coordinate layouts, canvas colors, User-Defined Properties (UDPs) and custom transformation macros inside its own model file, and its documentation states outright that UDPs are never generated into the database — so no forward-engineered DDL script can carry them.
Database architects should budget a brief post-migration phase to organize visual diagram layouts and configure team documentation settings in the new tool.
Post-Migration Workflow and Layout Reconstruction
Rebuilding non-transferable visual and operational elements follows a streamlined process:
- Visual layout arrangement: After importing DDL, use the layout tools to arrange tables logically, group entities into dedicated sub-diagrams, and assign custom header colors to distinguish schema modules.
- Virtual foreign key configuration: For legacy schemas or NoSQL collections lacking explicit physical foreign key constraints, define virtual foreign keys in the new model to document logical relations without altering the live database.

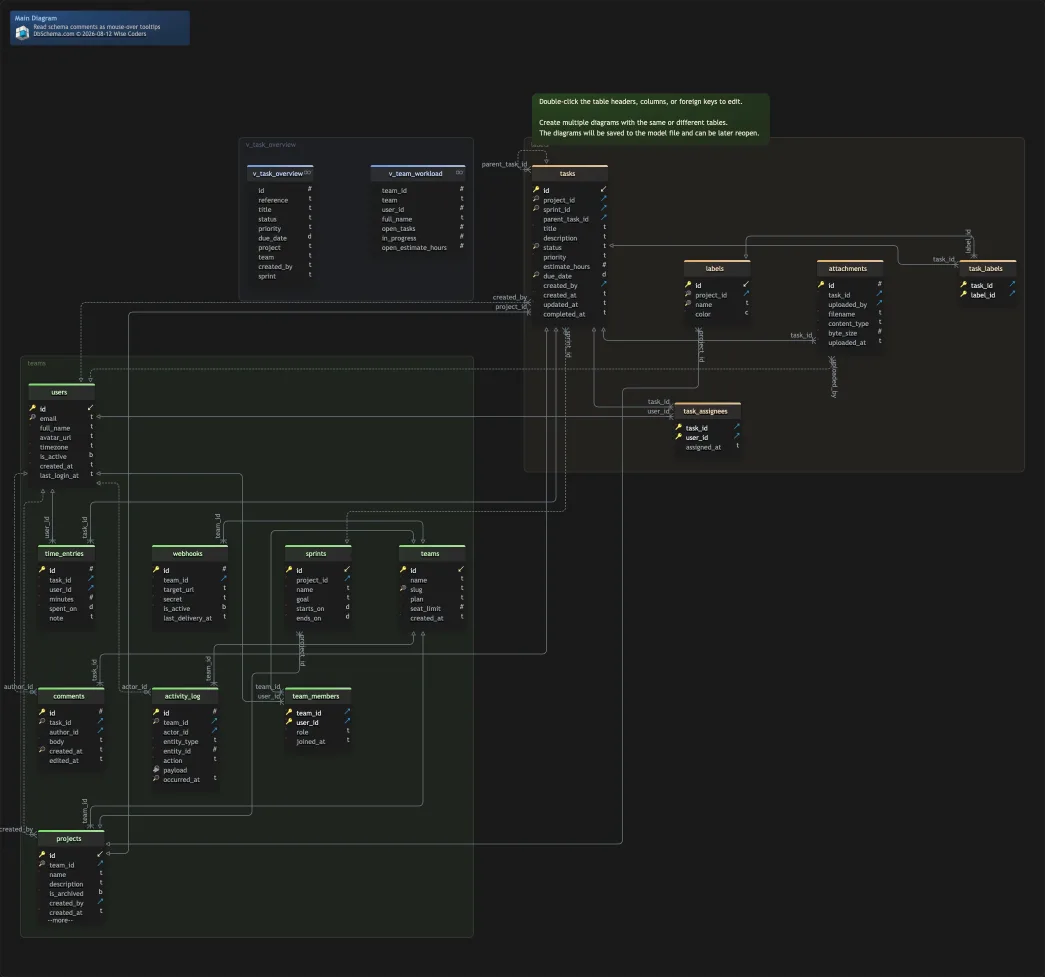

- Interactive documentation generation: Export complete data dictionaries as interactive HTML5 documentation files featuring vector diagrams, searchable entity indexes, and mouse-over column comment tooltips.
- User-Defined Property replacement: Re-record compliance classifications, data ownership, and retention flags that lived in Erwin UDPs as table and column comments so the governance context survives in the new model.
Frequently asked questions
What is the alternative to Liquibase for database migrations?
DbSchema Pro Edition allows you to compare a local design model directly against a live database. It generates the exact migration SQL script needed to deploy changes, bypassing the manual changelog approach used by Liquibase.
What is the alternative to Lucidchart for database design?
DbSchema Architect Edition provides a dedicated offline-first modeling environment where the visual diagram natively connects to underlying databases. It generates executable schema code and synchronizes it against a live database; Lucidchart imports a schema and can export DDL, but its documented workflow stops at that one-way export.
What is the difference between Erwin Data Modeler and ER/Studio?
Both Erwin Data Modeler and IDERA ER/Studio are legacy top-down enterprise modeling tools that focus heavily on metadata management and governance frameworks. The primary difference lies in their specific macro systems and proprietary enterprise repository integrations. However, many modern developers migrate away from both to adopt Git-friendly, cross-platform tools like DbSchema that run natively on macOS and Linux.
Is Erwin Data Modeler still used by enterprise teams?
Yes. Erwin Data Modeler is actively developed — the first ERwin shipped in May 1993, Quest Software announced its acquisition in January 2021, and the stable release is 15.2 — and it keeps a presence in organizations that run a centralized model repository. However, agile database architects increasingly leave it for tools that offer file-based XML models, native Git schema versioning, and published licensing.
What is the best way to export a model out of Erwin?
Forward-engineer the physical model to a SQL DDL script. That is the format DbSchema reads: Model > Import from External Format accepts SQL DDL, CSV, Excel and JSON, and its DBMS dropdown picks the SQL dialect to parse, not the source tool. Erwin can also save its own XML metamodel, but Erwin's documentation describes that XML as a way to exchange entity and attribute names, and DbSchema has no Erwin XML importer — so the DDL script is the route that carries tables, columns, constraints and data types across.
Can I use Google Search Console for my database documentation?
Yes. When you generate interactive HTML5 documentation of your schema using DbSchema Pro Edition and host it on a public-facing portal or open API site, you can connect it to Google Search Console. This tool lets you submit sitemaps, measure the site's organic Search traffic, and monitor index coverage to ensure developers are finding the most accurate database definitions.
Conclusion
Erwin's physical schema travels to DbSchema as a forward-engineered SQL DDL script; its layouts, diagram groupings and User-Defined Properties do not, and are the work you should budget for. To move off a legacy modeling suite, download DbSchema, work through the installation and registration steps, then open the model against your own database — reverse-engineer the live catalog, or import the SQL DDL script you forward-engineered out of Erwin. Schema synchronization is unlocked from the Pro edition upward.
